The Guide Sensmart PT870S is a high-performance, megapixel handheld thermal imaging camera featuring an ultra-clear 1280×1024 VOx infrared detector. [1, 2]

Key Specifications

Infrared Resolution: 1280×1024 pixels (12 µm pitch) [1, 2]

Thermal Sensitivity (NETD): ≤15 mK for exceptional detail recognition [1, 2]

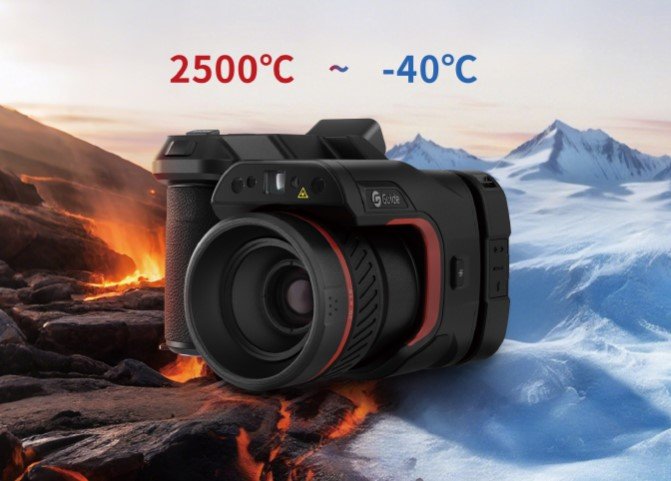

Temperature Range: -40 °C to 800 °C standard, expandable up to 2500 °C with an optional high-temperature lens [1, 2]

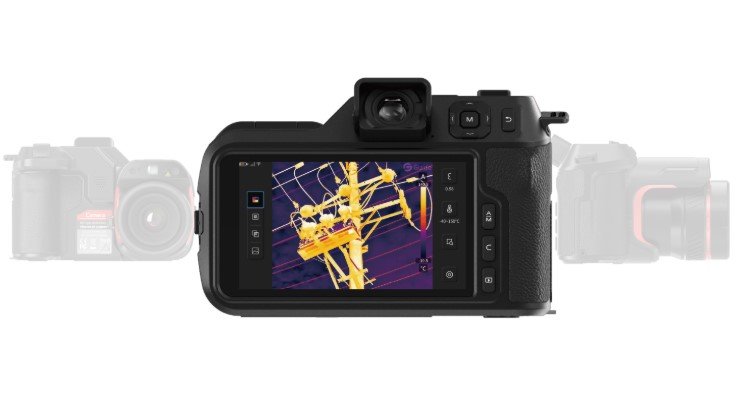

Display & Optics: Large 5.5-inch color touchscreen LCD paired with a built-in dual visible light camera (up to 16 MP) [1, 2]

Frame Rate: 50 Hz for smooth, real-time thermal dynamics monitoring [1]

Focus System: Multiple focus modes (including auto/manual/laser/touch) for rapid clarity [1, 2]

Core Features

ApexVision & PerIRVision: Powered by advanced image optimization and AI-assisted panoramic stitching to efficiently scan large substations, industrial buildings, and facilities. [1, 2]

Fast Charging: Charges up to 90% battery capacity in approximately 1 hour to reduce downtime. [1]

Connectivity: Built-in Wi-Fi, USB-C interface, local storage, and optional 5G/Bluetooth support for seamless data transfer and field reporting. [1, 2]

Standard Package Contents

Thermal camera device with front and back lens covers

2x Lithium-ion batteries with a desktop charger and power adapter

128 GB SD card

USB-A to USB-C cable, USB-C to Ethernet adapter, and Micro HDMI to HDMI cable

Wrist strap, shoulder strap, safety/carrying box, quick start guide, and calibration certificate [1]
