The Guide PT850S HD High-Performance Thermal Camera is an elite, professional-grade flagship infrared thermographic diagnostic tool engineered by Guide Sensmart for advanced industrial automation, scientific research, and utility inspections. [1, 2]

Core Specifications

• Infrared Resolution: 1024×768 pixels (12μm VOx detector) with SuperIR resolution enhancement up to 2048×1536. [1]
• Frame Rate: High-speed 50Hz for seamless radiometric and fluid temperature tracking. [1]

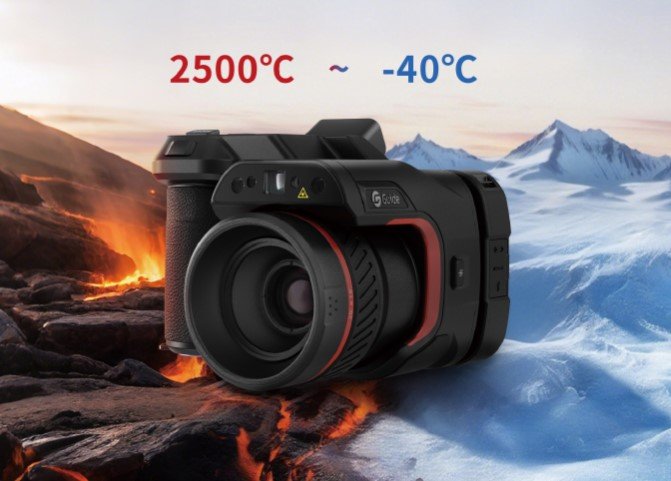

• Temperature Range: Auto-switching from -40°C to 150°C and 0°C to 800°C; expandable up to 2500°C with an optional high-temperature lens. [1]
• Measurement Accuracy: ±1°C or ±1% of reading. [1]
• Focusing System: Advanced manual, automatic, touch autofocus, and continuous autofocus via a built-in focus motor (achieving focus in ~0.4 seconds). [1, 2]

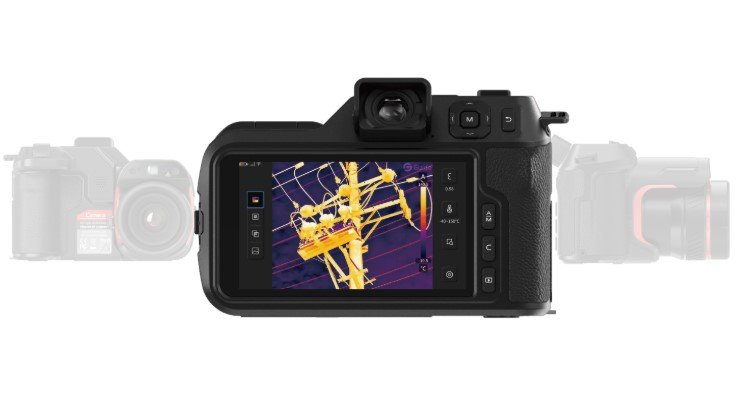

• Display & Optics: Rotatable touch LCD screen and high-definition integrated digital/visible light capabilities. [1]

Key Operational Features

• TwinView DFOV Lens: Allows quick transitions and optimization across different viewing distances. [1, 2]
• Smart Analysis & Alarms: Supports total target measurements (spot, line, area) alongside full-screen temperature threshold alarms (image, voice, color, and flash). [1]
• Connectivity: Features Wi-Fi, Bluetooth, USB-C, and optional 5G modules for instant data transfer, live video control, and cloud synchronization via mobile companion apps. [1]
• Power: Quick-charging battery architecture (charges up to 90% in approximately 1 hour). [1]
