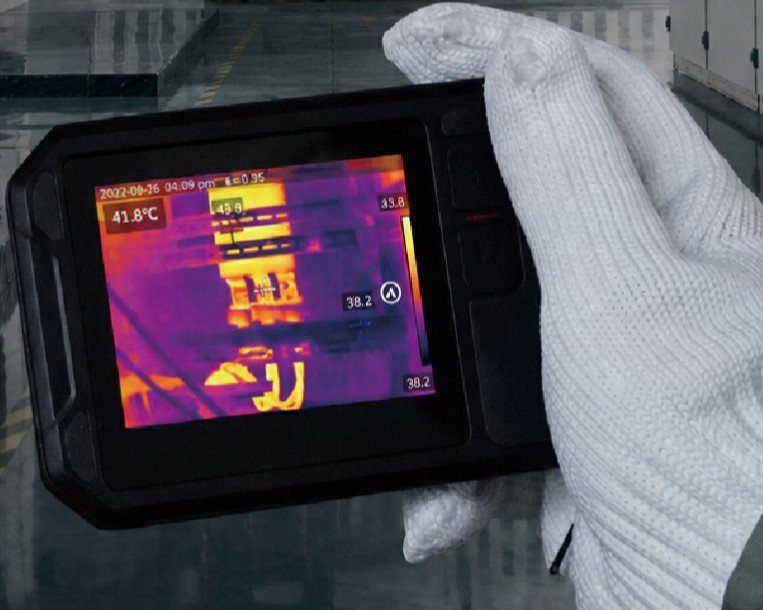

The Guide IR PF210S is a pocket-sized, non-contact thermal imaging camera designed for electrical inspections, HVAC maintenance, and building diagnostics.

An introductory overview of the Guide PF210 thermal camera features:

Key Specifications

• Infrared Resolution: 256 × 192 pixels
• Temperature Range: -20°C to 550°C (-4°F to 1022°F)
• Display: 3.5-inch LCD touchscreen
• Visible Light Camera: 5 megapixels
• Battery Life: Approximately 4 hours
• Protection Rating: IP54 (dust and water-spray resistant)

Core Features & Operation

• Laser Rangefinder & Pointer: Measures distance to targets up to 8 meters and helps calculate the area of rectangular objects.
• Smart Area Calculation: Automatically outlines objects with similar temperatures and calculates their area while displaying max, min, and average temperatures.
• Image Modes: Supports Infrared (IR), Visible Light (VIS), Picture-in-Picture (PIP), and Multispectral Image Fusion (MIF).
• Customizable Buttons: Two physical auxiliary buttons can be programmed for quick access to frequently used functions like color palettes or image modes.
• Connectivity: Built-
