The Guide Sensmart PT650 is a professional, high-performance handheld thermal imaging camera designed for industrial maintenance, electrical inspections, and advanced thermography.

Key Specifications

• Infrared Resolution: 640×512 pixels (upgradeable super-resolution up to 1280×1024)
• Thermal Sensitivity (NETD): ≤30 mK

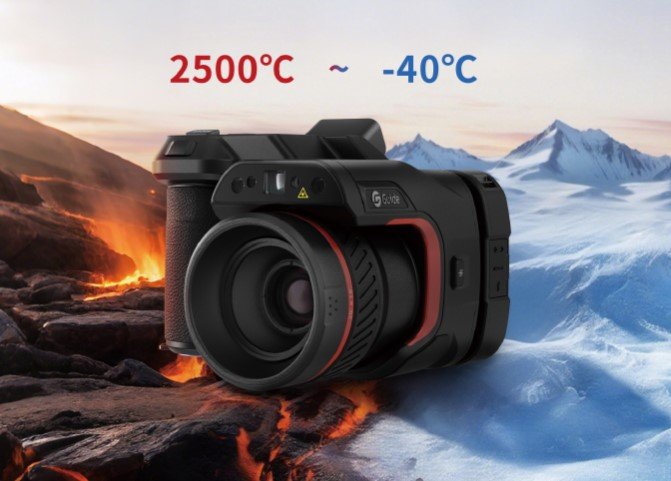

• Temperature Range: -40°C to 650°C (optional high-temperature range up to 2500°C)
• Focusing System: Manual, automatic, touch autofocus, and ContFocus continuous autofocus
• Battery: Fast-charging capability (reaches 90% charge in about 1 hour)

Core Features & Operation

• TwinView DFOV Lens: Allows you to switch seamlessly between wide scanning and close-up detail without changing lenses.

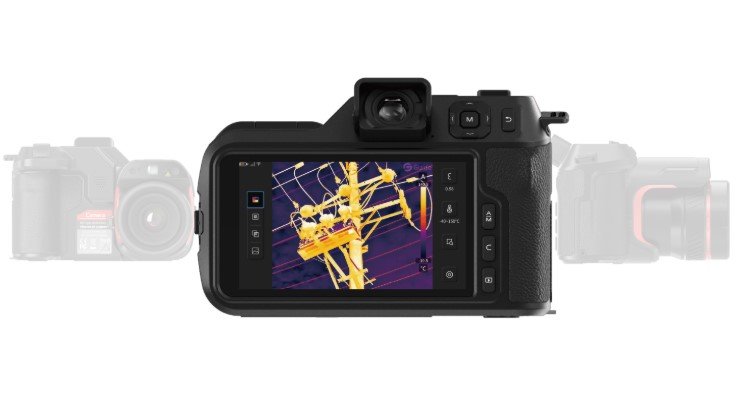

• Eyepiece and Screen Switching: The device features a built-in sensor. When you move closer to the eyepiece, the camera automatically turns off the main LCD screen and switches to the eyepiece view. Moving away reverses the process.
• Image Modes:
• IR Mode: Displays standard infrared thermal imagery.
• PIP (Picture-in-Picture): Superimposes an infrared window over a visible light image. You can drag or resize the IR area.
• MIF (Fusion): Combines thermal imaging with visible contour enhancement for clearer identification of objects and edges.
