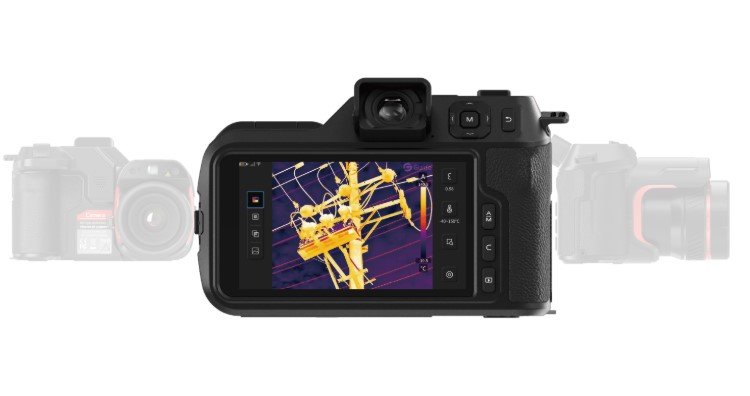

The Guide Sensmart PT450S is a high-performance professional thermal imaging camera belonging to the flagship PT II Series.

Core Specifications

• Infrared Resolution: 480 × 360 pixels (12μm) with Super Resolution support upgradable to 960 × 720.
• System Architecture: Equipped with the ApexVision S1 system architecture (ApexCore S1 detector + Nexus 1.0 platform + SharpIR 2.0 algorithm).
• **Thermal Sensitivity (NETD):} ≤ 15 mK high sensitivity.
• Frame Rate: 50 Hz high frame rate for real-time thermal dynamics.

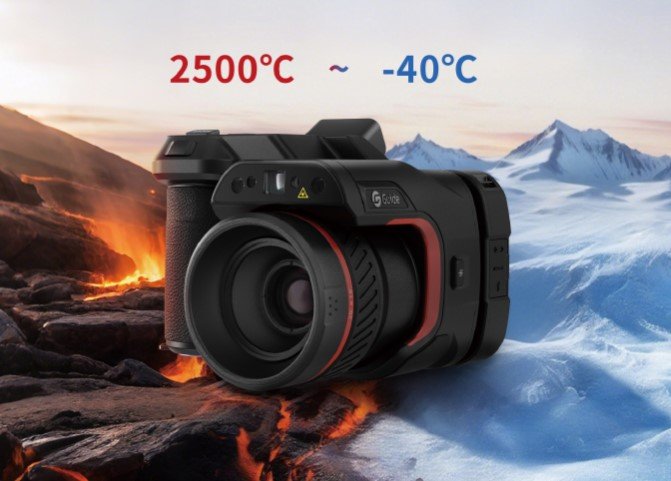

• Temperature Range: -40°C to 2500°C (covering freezing conditions up to ultra-high temperature industrial furnaces).
• Lens Options: Compatible with TwinView DFOV (Dual Field of View) lenses to switch between wide-area scanning and close-up analysis without changing lenses.
• Focus System: Advanced manual/automatic (A/M-Focus) hybrid focusing system with multiple focus modes.

Key Features & Operation

• Rapid Power Delivery: Charges up to 90% battery capacity in just 1 hour.
• Connectivity & Storage: Supports Wi-Fi, Bluetooth 5.0, USB-C, Micro HDMI, built-in 64 GB storage, and an external SD card slot.
• Software Support: Integrates with ThermoTools on PC and FocusIR on mobile devices (iOS/Android) for live view, analysis, and automated PDF reporting.
• Applications: Ideal for demanding industrial inspections, electrical maintenance, high-voltage substations, R&D laboratories, and building diagnostics.
