Key features
- NEW: Leak volume and cost indication on the go
- NEW: CO2 emission reporting
- Improve energy efficiency. Do more with the same air compressors and delay the capital expense of purchasing an additional compressor
- Lower utility and downtime costs
- Reduce time and costs to detect leaks
-

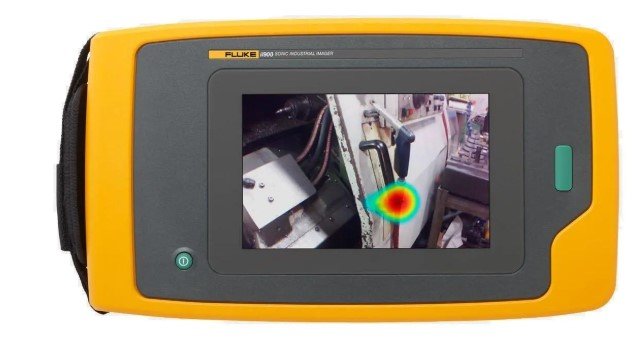

Specifications: Fluke ii900 Industrial Acoustic Imager
Improve production process and pneumatic equipment reliabilitySensors # of microphones 64 digital MEMS microphones Frequency band 2 kHz to 52 kHz Sound pressure sensitivity Detects a 0.005 CFM leak at 100PSI from up to 32.8 feet
(Detects a 2.5 cm3/sec leak at 7 bar from up to 10 meters)Operation distance range 0.5 to > 70 meters (1.6 to > 164 feet)* Field of View 63 ° ± 5 ° Nominal frame rate 25 FPS *Depending on ambient conditions Built-in digital camera (visible light) Field of View (FOV) 63 ° ± 5 ° Focus Fixed lens Zoom 3 x Digital Zoom Resolution 1.2 MP Display 7" LCD with backlight, under-sunlight readable Resolution 1280 x 800 (1,024,000 pixels) Touchscreen Capacitive Acoustic Image Yes, SoundMap™ image Image storage Storage capacity 20GB (>5000 pictures / >999 videos) Image format Blended visual and SoundMap™.JPG or .PNG Video format Blended visual and SoundMap™.MP4 Video length Up to 5 minutes Digital export USB-C for data transfer Acoustic Measurements Sound pressure (typical) 15.4 dB to 115.2 dB SPL (±1 dB) at 2 kHz
5.6 dB to 102.5 dB SPL (±2 dB) at 19 kHz
28.4 dB to 131.1 dB SPL (±1 dB) at 35 kHz
41.8 dB to 133.1 dB SPL (±3 dB) at 52 kHzAuto max/min dB gain Auto or manual, user selectable Frequency band selection User selectable through user-made presets or manual entry Classification and quantification LeakQ™
Leak size and cost estimationSoftware Ease of use Intuitive user interface Trend graphs Frequency and dB scale Spot markers dB level reading at center point of the image Asset ID QR code based asset ID identification Asset Inspection Status: 'As left', 'As found' ; 'Undetermined' Photo notes Up to 4 photos notes for reference Source Show single or multiple sources Profile Preset capture profiles Annotation: Asset name; Asset ID; Asset type; Leak type; Gas type; Pressure; Other Operating conditions; Weather notes Leak values Leak costs; Leak volume; LeakQ™ scale Battery Batteries (field-replaceable, rechargeable) Rechargeable Li-ion Battery life 6 hours (product includes spare battery) Battery charging time 3 hours Battery charging system External charger General Specifications Standard palettes 3: Grayscale, Ironbow, Blue-Red Operating Temperature -10 °C to 45 °C (14 °F to 113 °F) Storage Temperature -20 °C to 70 °C (-4 °F to 158 °F) Without batteries Relative humidity 10 % to 95 % non-condensing Size (H x W x L) 186 mm x 322 mm x 68 mm (7.3 inches x 12.7 inches x 2.7 inches) Weight (battery included) 1.8 kg (3.95 pounds) Ingress Protection (IP) IP40 Warranty 2 year Fluke Premium Care Premium Care Standard** Self-diagnostic notification Array-health test to identify when microphone array needs attention Supported languages Dutch, English, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese RoHS compliant Yes ** Subject to regional availability Safety General Safety IEC 61010-1 Electromagnetic Compatibility (EMC) International IEC 61326-1: Portable Electromagnetic Environment IEC 61326-2-2
CISPR 11: Group 1, Class AKorea (KCC) Class A Equipment (Industrial Broadcasting & Communication) USA (FCC) 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
