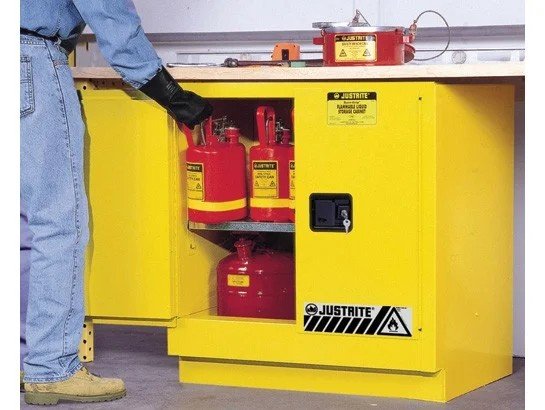

Justrite 892300 22 Gallon Flammable Safety Cabinet

The Justrite model 892300 is a 22 gallon (83 litre) undercounter flammable safety cabinet designed for the safe storage of chemicals and flammable liquids beneath countertops and workbenches. It features FM-approved, fire-tested construction, 2 manual-close self-latching doors, 1 adjustable SpillSlope® shelf and durable 18-gauge steel double-wall construction.

Specifications

• Brand: Justrite
• Model No.: 892300
• International Model No.: 8923001
• Product Category: Flammable Safety Cabinet
• Cabinet Type: Sure-Grip® EX Undercounter
• Capacity: 22 gallons / 83 litres
• Number of Doors: 2
• Door Type: Manual Close
• Door Opening: Up to 180 degrees
• Door Latching: Self-latching, 3-point stainless steel system
• Number of Shelves: 1
• Shelf Type: Galvanised Steel SpillSlope® Shelf
• Adjustable Shelf: Yes
• Shelf Adjustment: 3 in / 76 mm centres
• Shelf Safe Allowable Load: 350 lb / 159 kg
• Material: 18-gauge steel
• Steel Thickness: 1 mm
• Construction: Double-wall steel
• Insulating Air Space: 1.5 in / 38 mm
• Construction Method: Fully welded
• Colour: Yellow
• Toe Kick: Recessed
• Toe Kick Dimensions: 89 mm H x 64 mm D
• Sump Depth: 2 in / 51 mm
• Dual Vents with Flame Arresters: Yes
• Adjustable Self-Levelling Feet: Yes
• Grounding Connector: Built-in
• Handle: U-Loc™
• Locking System: Cylinder lock and key set, with padlock option
• Warning Label: Trilingual Haz-Alert™ reflective label
• Finish: Lead-free epoxy/polyester powder coat
• Chemical Resistance: Yes
• Corrosion and Humidity Resistance: Yes
• FM Approval: Yes
• Fire Tested: Yes
• OSHA Compliance: Yes
• NFPA 30 Compliance: Yes
• NFPA 1 Compliance: Yes
• EPA-Compliant Leak-Tested Sump: Yes
• Shelf Standard: ANSI MH28.1
• UPC: 697841113077
• Pallet Quantity: 2
• Warranty: 10 years
• Exterior Dimensions: 889 mm H x 889 mm W x 559 mm D
• Interior Dimensions: 695 mm H x 806 mm W x 476 mm D
• Net Weight: 73.9 kg

Safety Note

Flammable liquid storage requirements depend on the type and flammability of the chemicals being stored. Ensure the cabinet and storage method comply with applicable workplace and local safety requirements.
