Justrite 892220 22 Gallon Sure-Grip EX Slimline Flammable Safety Cabinet

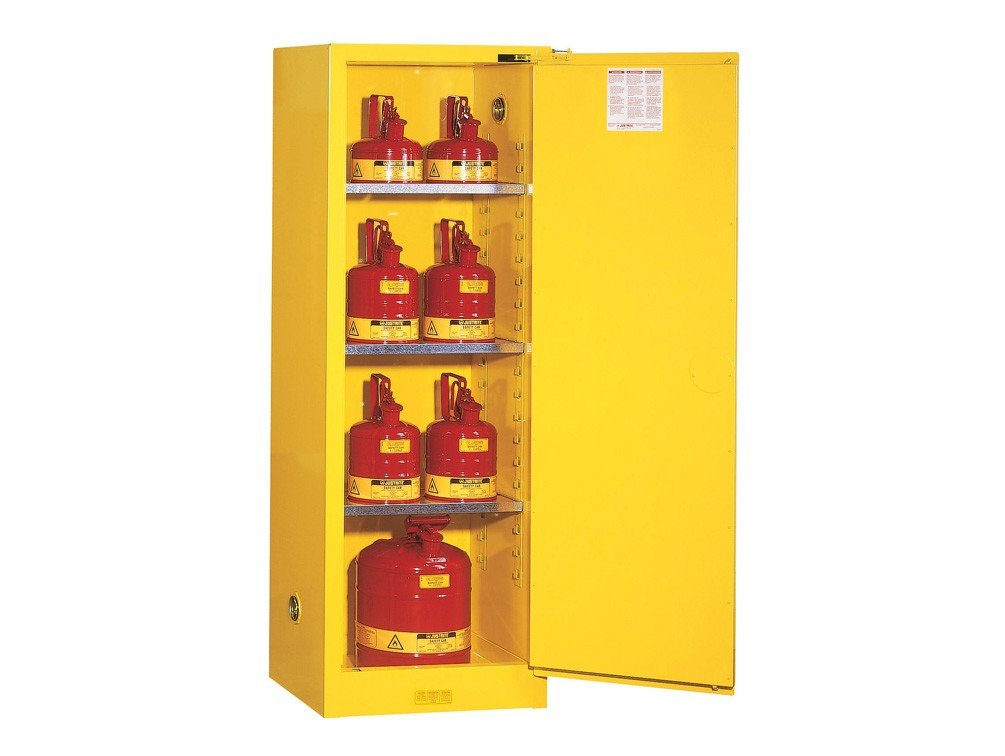

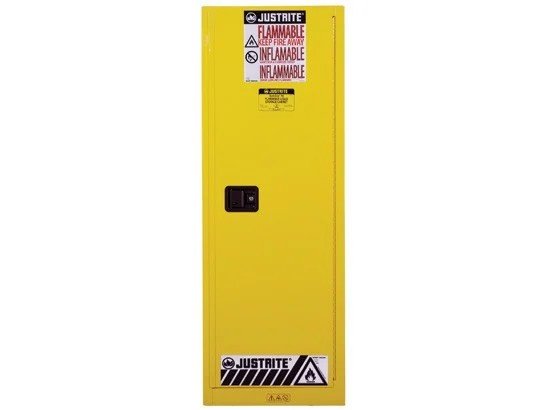

Justrite model 892220 is a 22 gallon (83 L) slimline flammable safety cabinet with 3 adjustable shelves and 1 self closing door. Its fire resistant double wall steel construction, compact footprint and FM approval make it suitable for safe flammable liquid storage where floor space is limited.

Specifications

• Brand: Justrite
• Model No.: 892220
• International Model No.: 8922201
• UPC: 697841112988
• Product Type: Flammable Safety Cabinet
• Series: Sure-Grip® EX Slimline
• Colour: Yellow
• Capacity: 22 gallon / 83 L
• Number of Doors: 1
• Door Type: Self Close
• Number of Shelves: 3
• Adjustable Shelves: Yes
• Material: 18-gauge steel
• Construction: Double wall steel with 38 mm insulating air space
• Shelf Type: Galvanised Steel SpillSlope® Shelves
• Shelf Load Capacity: 159 kg per shelf
• Shelf Adjustment: 76 mm centres
• Sump Depth: 51 mm
• Door Opening: Up to 180°
• Self Close Mechanism: Concealed self closing mechanism with fusible links
• Fusible Link Activation Temperature: 74°C
• Latching System: Three stainless steel bullet slams
• Handle: U-Loc™ Handle
• Locking: Cylinder lock and key, with padlock compatibility
• Warning Label: Trilingual Haz-Alert™ reflective label
• Vents: Dual vents with flame arresters
• Feet: 4 adjustable self levelling feet
• Grounding: Built-in grounding connector
• Finish: Lead-free epoxy/polyester powder coating
• Fire Resistant: Yes
• Leak Tested: Yes
• FM Approved: Yes
• OSHA Compliant: Yes
• NFPA 30 Compliant: Yes
• NFPA 1 Compliant: Yes
• International Fire Code Compliant: Yes
• Shelf Standard: ANSI MH28.1
• Warranty: 10 Years
• Exterior Dimensions: 1651 mm H x 591 mm W x 457 mm D
• Interior Dimensions: 1537 mm H x 508 mm W x 370 mm D
• Net Weight: 80.7 kg
• Pallet Quantity: 2

Safety Note

Designed for the safe storage and segregation of flammable liquids. When properly used, the self closing door automatically shuts under fire conditions when the fusible links reach approximately 74°C.
