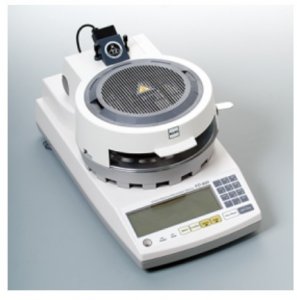

• Flagship model of infrared moisture analyzer
• Minimum moisture content display 0.01%, weight display 1mg
• Dual temperature control even monitors on-tray temperatures
• Significantly shortened measurement time compared with our other models

Specifications

Measurement method	Detection of weight loss by heating & drying
Sample mass	0.1-120g (optional weight sampling)
Measurement subject	Moisture / Solid content / Weight
Measurement range	0-100% (wet basis, solids); 0-500% (dry basis)
Repeatability (standard deviation)	Sample with a weight of 5g or higher : 0.05%Sample with a weight of 10g or higher : 0.02%)
Resolution	Moisture percentage 0.01% / 0.1%; Weight 1 mg Temperature setting range for thermistor (T1): 30 - 180°C (1°C interval); for radiation thermometer (T2) 30 - 250°C (1°C interval)
Measurement modes	Automatic stop mode, Timer stop mode, Rapid drying mode, Equilibrium drying mode, Step drying mode, Predictive (comparative) measurement mode
External output	RS-232C interface
Environmental conditions	Temperature 5~40°C , Humidity : max of 85%RH Pollution degree 2 , Altitude up to 2000m
Sample dish	SUS (diameter 130 mm, depth 13 mm)
Heat source	Mid-wave infrared quartz heater (200Wx2)
Power source	AC100~120V / 220~240V (50/60Hz)
Power consumption	Max 900W
Dimensions & weight	220(W)x415(D)x190(H), 4.5kg ,Shipment 310(W)x580(D)x400(H), 10kg
Accessories	Spare sample pan, Aluminum sheets, etc
Options	10x Printer paper rolls, 500x Aluminum sheets Grain Crusher TQ-100 Windshield with Deodorizer FW-100 Printer Set (VZ-380, Printer Cable: VZC-69) Data logger software "FDL-02" (RS-232C cable, USB-RS232C conversion cable), Radiation thermometer calibration kit GF-210 (digital thermometer, standard heating sample)
