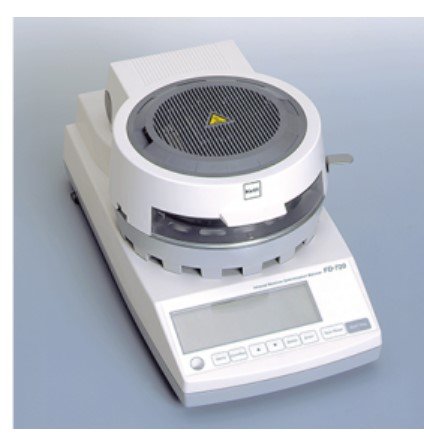

• Mid-class model of infrared moisture analyzer
• Minimum moisture content display 0.01%, weight display 1mg
• Features infrared quartz heater that achieves high drying-efficiency
• Six types of measurement modes

Specifications

Measurement Method	Heat drying and weight loss
Sample mass	0.5~120g
Measurement subject	Moisture / Solid content / Weight
Reproducibility (Standard deviation)	Sample with a weight of 5g or higher : 0.05%Sample with a weight of 10g or higher : 0.02%
Measurement range	0~100%(wet basis, solids),0~500%(dry basis)
Resolution	0.01% , 1mg
Temperature range	30~180°C
Measurement modes	Automatic operation mode:Timed operation mode (1~240min or continuous):High-speed drying mode:Low-speed drying mode:Stepped drying mode (max of 5 steps):Predictive measuring mode
External output	RS-232C interface
Environmental conditions	Temperature 5~40°C , Humidity : max of 85%RH Pollution degree 2 , Altitude up to 2000m
Sample dish	SUS (diameter 130mm, depth 13mm )
Heat source	Mid-wave infrared quartz heater (200Wx2)
Power supply	AC100~120V / 220~240V (50/60Hz)
Power consumption	max 900W
Size and Weight	220(W)x415(D)x190(H), 4.5kg ,Shipment 310(W)x580(D)x400(H), 10kg
Accessories	Sample dish 2 pcs , Sample dish handler 2 pcs , Wind shield , Sample dish tray , Spoon and spatula set , Spare fuses(T8A 250V) 2 pcs , Power cord , Aluminum sheets(20 pcs)x2 , Operating manual
Options	Printer VZ-380 Windshield with Deodorizer FW-100 Grain Crusher TQ-100 Temperature sensor inspection set GF-110
