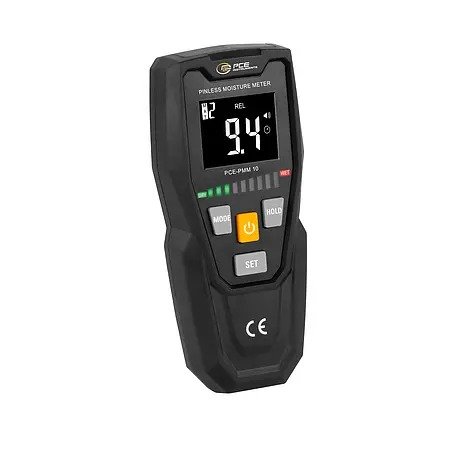

Moisture Meter PCE-PMM 10

Moisture Meter / induction measurement for 10 material types / handy and user-friendly / traffic light function / 2-inch LC display

The Moisture Meter provides accurate moisture analyses for ten different material types, including drywall, masonry, hardwood, softwood, anhydrite screed (wt%), anhydrite screed (CM%), cement screed (wt%), cement screed (CM%), concrete and gypsum screed. It uses a capacitive measuring method and the sensor works inductively.

The Moisture Meter has two limit value settings which are shown on a bar graph and are designed for the 10 material types that our Moisture Meter can analyse. The first alarm point activates a rapid beep and the yellow LED when the moisture is between 20% and 69%. The second alarm point, which responds at values between 70% and 100%, generates a continuous tone and lights up the red LED. These functions ensure reliable moisture monitoring and provide clear audible and visual warning signals.

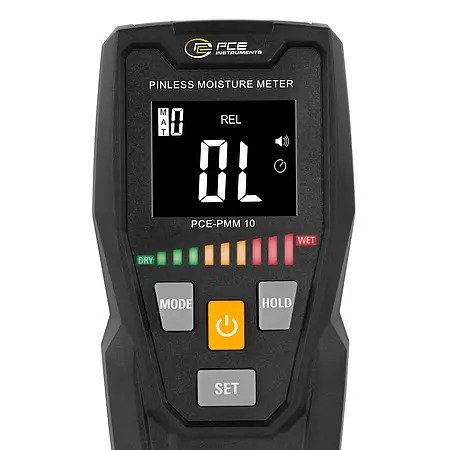

The Moisture Meter also has a hold function and an automatic power off function. The readings are shown on a 2-inch backlit LC display which also displays a battery warning.

The Moisture Meter is ideal for use in construction and renovation projects to check moisture levels in walls, floors and ceilings. It is often used by site managers, tradesmen and surveyors to ensure that materials are dry and ready for processing. It is also useful in woodworking, quality control of construction sites and in the refurbishment of damp rooms to prevent mould growth and other damage.

Highlights

- induction sensor for 10 material types
- limit value settings
- HOLD function
- automatic power off
- battery warning

Specification

Humidity
Material   Dry construction
Measurement range up to   0 ... 100 %
Resolution   0,1 %
Accuracy   ±4 % of Rd

Humidity
Material   Masonry
Measurement range up to   0 ... 89,5 %
Resolution   0,1 %
Accuracy   ±4 % of Rd

Humidity
Material   Hardwood
Measurement range up to   0 ... 35 %
Resolution   0,1 %
Accuracy   ±4 % of Rd

Humidity
Material   Softwood
Measurement range up to   0 ... 55 %
Resolution   0,1 %
Accuracy   ±4 % of Rd

Humidity
Material   Anhydrite screed (% by weight)
Measurement range up to   0 ... 3,5 %
Resolution   0,1 %
Accuracy   ±0.4 % of Rd

Humidity
Material   Anhydrite screed (CM%)
Measurement range up to   0 ... 1,5 %
Resolution   0,1 %
Accuracy   ±0.2 % of Rd

Humidity
Material   Cement screed (% by weight)
Measurement range up to   0 ... 4,7 %
Resolution   0,1 %
Accuracy   ±0.5% of Rd

Humidity
Material   Cement screed (CM%)
Measurement range up to   0 ... 3 %
Resolution   0,1 %
Accuracy   ±0.4 % of Rd

Humidity
Material   Concrete
Measurement range up to   0 ... 6 %
Resolution   0,1 %
Accuracy   ±0.7 % of Rd

Humidity
Material   Gypsum screed
Measurement range up to   0 ... 10 %
Resolution   0,1 %
Accuracy   ±1.1% f.s.

General technical data
Measuring functions   HOLD, ALARM
Display type   LCD with backlight
Display size   2 Inch
Sensor   inductive
Automatic power-off   10 min
Alarm   optical, Acoustic
Alarm modes   lower limit, upper limit
Measuring principle   Capacitive measuring method
Alarm settings   20 ... 100 %
Menu language   English, English (GB)
Protection class (device)   IP20
(Rechargeable) battery   1 x 9 V 9V block , Zinc carbon
Capacity   550 mAh
Operating conditions   0 ... 40 °C , 0 ... 80 % RH
Storage conditions   -10 ... 40 °C , 0 ... 70 % RH
Dimensions ( L x W x H )   155 x 70 x 35 mm
Weight   144 g
