SEW-Taiwan

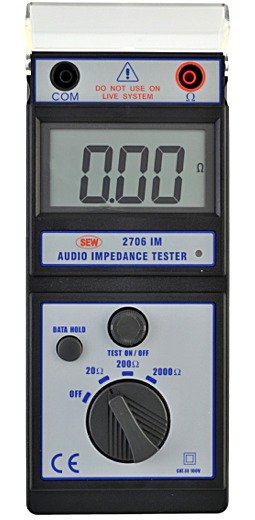

Sew 2706 IM

FEATURES
● True measurement of speaker systems actual impedance at 1kHz.
● Three test ranges (20Ω / 200Ω / 2000Ω) allow testing of home
    theater and commercial sound systems.
● Measures transformer impedances.
● Battery operated.
● Low battery indication.
● Data hold function.
● Timer function for continuous hands free operation.
● The timer can last about 3-5 minutes when users press.
● TEST ON/OFF button.

  SPECIFICATIONS

Measuring ranges 0-20Ω / 0-200Ω / 0-2000Ω
Test frequency 1kHz
Accuracy 20Ω : ± 2%rdg±2dgt or ± 0.1Ω,
which is greater
200Ω / 2000Ω : ± 2%rdg±2dgt
Low battery
indiction
“  “ Symbol appears on the display
Data hold indiction   “ Symbol appears on the display
Display LCD 3½ digit (2000 counts)
Dimensions 205(L) × 90(W) × 55(D)mm
Weight
(battery included)
Approx. 530g
Power source 1.5V (AA) × 6
Safety standard EN 61010-1 CAT III 300V
EN 61326-1
