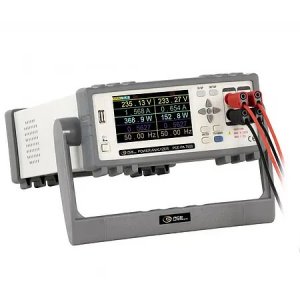

2-Channel Power Meter for Measuring Current, Voltage, Power, and Consumption / Power Measurement Range 0.1 ... 5000 W / Current 0.001 ... 20 A AC / Color Display with Switchable View / Includes Safety Measurement Cables

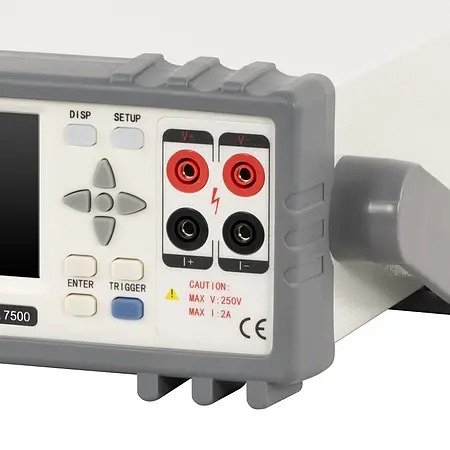

The power meter is designed for accurate measurement and analysis of parameters such as power consumption and quality. The power meter has 2 input channels for measuring voltage, current, active power, power factor, frequency, and energy consumption in kWh. In addition to the color display, the power meter has additional input jacks for measurements up to 2 A. The measurement range of 0.1 ... 5000 W allows power measurement for many consumers in industry and crafts. The power meter has a current measurement range of 0.001 ... 20 A AC with a resolution of 1 mA.

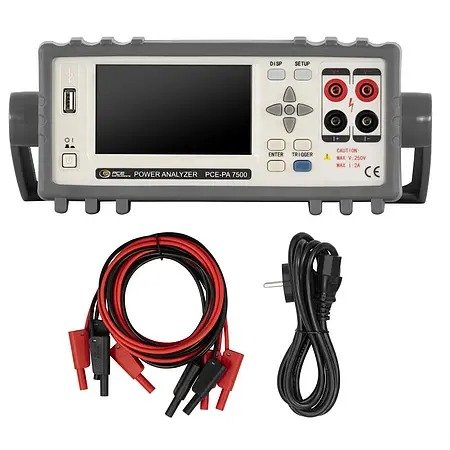

In the settings of the power meter, an alarm value can be set for the power and current value, which gives an audible warning when exceeded. The power meter comes with 4 safety measurement cables, and the measurement jacks are also protected against electric shock to enable the operator to measure safely. The power meter can be used in the laboratory on the table as well as in industrial environments, thanks to the adjustable stand bracket.
Highlights
- Power Measurement Range: 0.1 ... 5000 W
- Current Measurement Range: 0.001 ... 20 A AC
- Frequency, Power Factor, Energy
- Accuracy: ±(0.4% of measured value + 0.1)

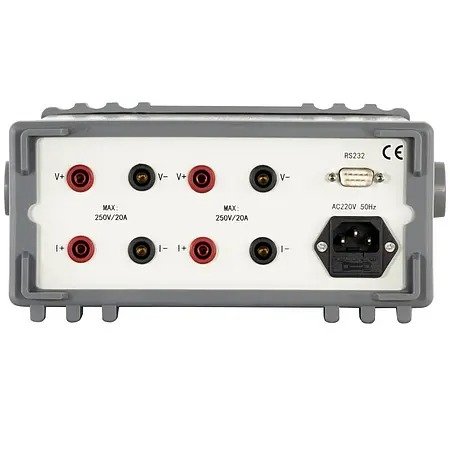

- 2 Input Channels

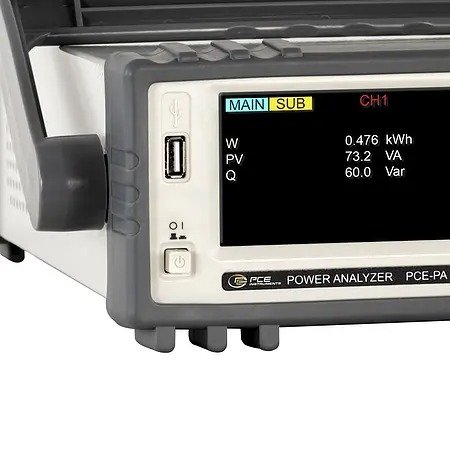

- Color Display
Specification
| Alternating Voltage AC | |
| Measurement Range | 2 V ... 250 V |
| Resolution | 0.01 V |
| Accuracy | ±(0.4% of measured value + 0.1) |
| Alternating Current AC | |
| Measurement Range | 0.001 A ... 20 A |
| Resolution | 0.001 A |
| Accuracy | ±(0.4% of measured value + 0.1) |
| Active Power | |
| Measurement Range | 0.1 W ... 5000 W |
| Resolution | 0.1 |
| Accuracy | ±(0.4% of measured value + 0.1) |
| Power Factor | |
| Measurement Range | 0.001 ... 1 |
| Resolution | 0.0001 |
| General Technical Data | |
| Number of Measurement Channels | 3 |
| Frequency | 10 ... 100 Hz |
| Display Type | TFT Color Display |
| Display Size | 4.3 Inches |
| Cable Length | 2 m |
| Menu Language | English, Chinese |
| Protection Class | IP20 |
| Weight | 2870 g / 6.3 lb |
| Device Weight with Accessories | 3352 g / 7.3 lb |
| Device Weight with Accessories and Packaging | 5220 g / 11.5 lb |
| Dimensions (L x W x H) | 355 x 265 x 110 mm / 13.9 x 10.4 x 4.3 in |
| Operating Conditions | 0 ... 40 °C, 0 ... 93 % r.H. |
| Storage Conditions | 0 ... 55 °C, 0 ... 93 % r.H. |
