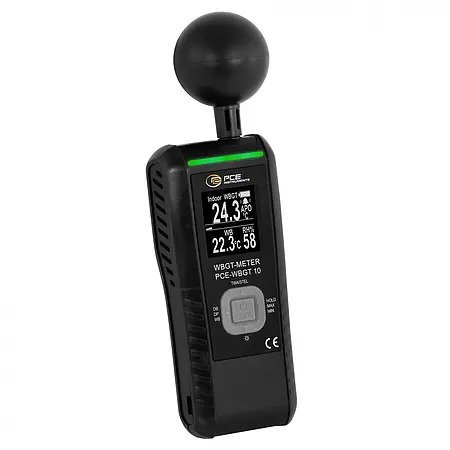

Heat Stress Meter / WBGT Meter / Indoor or outdoor mode / Real-time display / Acoustic alarm / Standby mode / USB-C interface
The Heat Stress Meter / WBGT Meter is used to assess heat stress in working environments, sports facilities or industrial plants. It is used both indoors and outdoors to precisely measure climatic conditions and ensure the safety of people exposed to heat.
The measuring range of the device covers a large number of climate-relevant variables: The WBGT value can be recorded from 0 ... 50°C / 32 ... 122°F, the sphere temperature (TG) ranges from -20 ... 125°C / -4 ... 257°F, as does the air temperature (AIR). The dew point (DP) is measured between -20...60°C / -4 ... 140°F, the wet bulb temperature (WB) covers the same range. The device also records the relative humidity (RH%) in the range from 0 to 100%.
The Heat Stress Meter / WBGT Meter offers a range of practical functions that make everyday use particularly easy. In addition to the display of MIN, MAX, HOLD and AVG, it is possible to switch between indoor and outdoor mode. The integrated data logger with 8 MB memory records up to around 260,000 measured values, which can be easily transferred to a PC via USB-C. Suitable software is available for reading out and analyzing the data, with which measurement series can be clearly displayed and saved. The storage interval can be flexibly set from 0 seconds to 10 minutes.
An acoustic, adjustable WBGT alarm provides additional safety, while the real-time display, automatic switch-off and customizable standby mode ensure convenient operation. With switchable units between °C and °F, an easy-to-read 1.8-inch LCD display, USB-C charging function, compact design and a 46 mm diameter sensor ball, this device is handy, versatile and easy to use.
A Heat Stress Meter / WBGT Meter of this type is indispensable for health and safety officers, safety engineers, sports coaches or event organizers who need to monitor heat stress. It provides reliable data for recognizing risks and taking preventative measures. Thanks to its versatility, the Heat Stress Meter / WBGT Meter is suitable for professional use as well as for research and training purposes.
Highlights
- Measuring functions: MIN, MAX, HOLD, AVG
- Indoor or outdoor mode - selectable
- Data logger 8 MB
- WBGT alarm: adjustable, acoustic
- Real-time display
- Automatic switch-off
- Adjustable standby mode
- Convertible units °C and °F
- 1.8 inch LCD display
- Rechargeable via USB-C cable
Specification
| Relative humidity | |
| Measurement range up to | 0 ... 20 % |
| Resolution | 1 % |
| Accuracy | ±5% @ 25°C |
| Relative humidity | |
| Measurement range up to | 20 ... 80 % |
| Resolution | 1 % |
| Accuracy | ±3 % |
| Relative humidity | |
| Measurement range up to | 80 ... 100 % |
| Resolution | 1 % |
| Accuracy | ±5% @ 25°C |
| Wet bulb temperature | |
| Measurement range up to | -20 ... 0 °C |
| Resolution | 0,1 °C |
| Accuracy | ±3 °C |
| Wet bulb temperature | |
| Measurement range up to | 0 ... 50 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1.5 °C |
| Wet bulb temperature | |
| Measurement range up to | 50 ... 60 °C |
| Resolution | 0,1 °C |
| Accuracy | ±3 °C |
| WBGT | |
| Measurement range up to | 0 ... 50 °C |
| Resolution | 0,1 °C |
| Accuracy | ±0.3°C |
| Dew point | |
| Measurement range up to | -20 ... 0 °C |
| Resolution | 0,1 °C |
| Accuracy | ±3°C |
| Dew point | |
| Measurement range up to | 0 ... 50 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1.5°C |
| Dew point | |
| Measurement range up to | 50 ... 60 °C |
| Resolution | 0,1 °C |
| Accuracy | ±3°C |
| Temperature | |
| Measurement range up to | -20 ... 0 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1 °C |
| Temperature | |
| Measurement range up to | 0 ... 60 °C |
| Resolution | 0,1 °C |
| Accuracy | ±0.3 °C |
| Temperature | |
| Measurement range up to | 60 ... 125 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1 °C |
| General technical data | |
| Measuring functions | MIN, MAX, HOLD, AVG |
| Units | °C, °F |
| Display type | LCD with backlight |
| Display size | 1,8 Inch |
| Storage medium | Internal memory |
| Storage capacity | 8 MB |
| Memory capacity (additional information) | 8 MB EEPROM for approx. 260,000 measured values, transferable to PC via USB-C only. |
| Storage interval from | 0 s |
| Storage interval to | 10 min. |
| Interface | USB-C |
| Warm-up time | 30 s |
| Operating time | 72 h |
| Automatic power-off from...to | 15 ... 360 min. |
| Automatic power-off can be deactivated | Yes |
| Alarm | Acoustic |
| Dimensions | Sensor ball: Ø 46 mm |
| Alarm settings | 0 ... 9999 °C |
| Menu language | English, English (GB) |
| Power supply | 5 V |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium-ion battery |
| Capacity | 2000 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 95 % RH |
| Storage conditions | -20 ... 60 °C , 0 ... 99 % RH |
| Dimensions ( L x W x H ) | 200 x 62 x 38 mm |
| Weight | 187 g |
