Cable Locator PCE-CL 20

Category: Cable Locator
The PCE-CL 20 is a cable locator used to detect live and voltage-free electrical wires. This cable locator also can be used to locate metallic and non-metallic gas or water pipes, identify short circuits, and follow lines inside walls or under flooring.

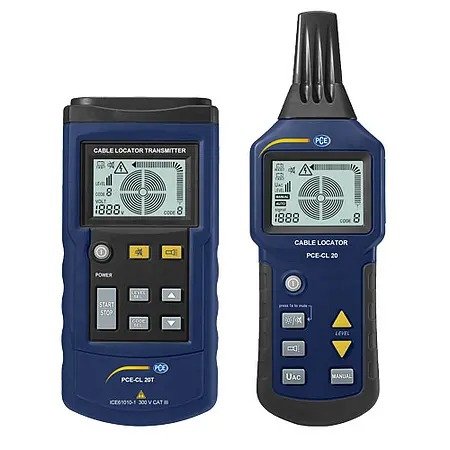

The cable locator consists of two individual units: a signal generator (or transmitter) and a receiver. Both units are equipped with bright LED lights for use in dark and dimly lit spaces. In addition, the receiver has a backlit LCD screen.

Highlights

- Output signal: 125 kHz
- Compatible with one- or two-pole circuits
- Automatic, manual and UAC measuring modes
- Locates hidden cables, wires or pipes
- Helps identify short circuits and fuses
- Includes alligator clips, measuring tips, test leads and ground rod

Specification

Technical specification

Output

125 kHz

External Voltage Identification Area

DC 12 ... 400 V ± 2.5%; AC 12 ... 400 V (50 ... 60 Hz) ± 2.5%

Display

LCD

Maximum Voltage

Max. 400 V AC / DC

Overvoltage Category

CAT III 300 V

Pollution Degree

2

Power Supply

9 V battery

Power Consumption (minimum voltage)

approximately 31 mA

Power Consumption (maximum voltage)

about 115 mA

Backup

F 0.5 A 500 V, 6.3 mm x 32 mm / 0.24 x 1.25in

Operating Conditions

0 ... +40 ° C/+32 ... +72 ° F
rel. Humidity <80%

Storage Conditions

-20 ... +60 °C /+12 ... +92 ° F
rel. Humidity <80%

Dimensions

190 mm x 89 mm x 42.5 mm
7.48 in x 3.50 in x 1.67 in

Weight

420 g / 0.92 lbs (including battery)


Technical specification for cable detector (receiver)

Detection Depth

depends on material and the particular application

Pole Application

about 0 ... 2 m / 0 ... 6.56 ft

Bipolar Application

about 0 ... 0.5 m / 0 ... 1.64 ft

Simple Loop

Up to 2.5 m / 8.2021 ft

Grid Voltage Detection

about 0 ... 0.4 m / 0 ... 1.31 ft

Display

LCD

Power Supply

6 x 1.5V AAA batteries

Power Consumption (minimum voltage)

about 32 mA

Power Consumption (maximum voltage)

approximately 89 mA

Environmental Conditions

0 ... +40 °C / +32 ... +72 ° F
rel. Humidity <80%

Storage Conditions

-20 ... +60 °C / +12 ... +92 ° F
rel. Humidity <80%

Dimensions

241.5 mm x 78 mm x 38.5 mm
9.5 in x 3.07 in x 1.51 in

Weight

350 g / 0.77 lbs (including batteries)
