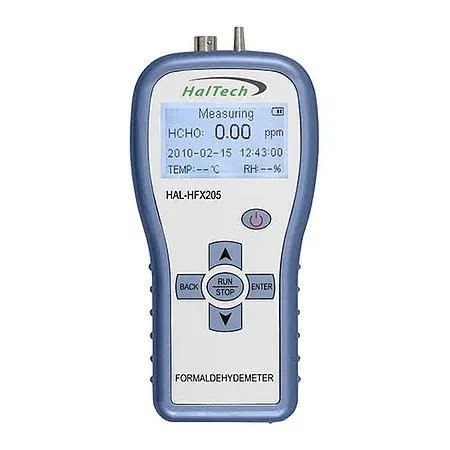

Formaldehyde Meter HFX205-25

Professional Formaldehyde Tester HFX205-25 to measure air after the evaporation of wooden material, flooring, furniture, textiles… / alarm signal exceeding of limit / USB-interface

This Alert Meter is designed to detect formaldehyde in air. The Alert Meter shows the formaldehyde-concentration on site and thereby avoids time-consuming and expensive analysis in laboratories. The formaldehyde Alert Meter runs with help of an electromechanical sensor and is designed to determine the current permitted limit. A measurement can be accomplished in less than 30 seconds. The concentration is measured in ppm units. Some substances such as ethanol, propanol or methanol can interfere with the measuring data. An optionally purchasable hygrometer-sensor allows for a correction of the measured data in order to achieve accurate measurements.



The Alert Meter can be connected to a computer or laptop by means of the USB-Interface, thereby allowing an automatic and continuous measuring over a long period of time. Time and battery status are shown continuously on a display. Information on all the gass-measuring devices of PCE Instruments is shown below. For further information, please feel free to read the following technical data. Our engineers and technicians will gladly advise you on the measuring device for formaldehyde concentration or any other product in terms of regulation and control, or scales and balances of PCE Instruments.

Highlights

Short reaction time
Real-time display
Manual and auto data storage
- High-speed USB
- Software for Online Data transfer
No warm-up time necessary
- Automatic background lightening
- Self-calibration

Alarm signal if level of limit is reached
- Operating time up to 6 hrs

Specification

Measuring range 0 ... 25 ppm
Resolution 0.01 ppm
Repeatability < ± 2 %
Sensor Electrochemical sensor
Response time < 30 seconds
Calibration Automatic self-calibration
Data memory Up to 500 data sets
Interface USB
Operating temperature 5 ... 40 °C
Humidity 15 ... 90 % RH
Power supply Li-ion rechargeable batteries (3.7 V / 1200 mAh)
AC adapter 100 ... 240 V to 5 VDC / 1 A
Continuous operation 6 hours with rechargeable batteries
Dimensions 80 x 45 x 157 mm
Weight approx. 200 g


Cross-sensitivity to formaldehyde
Chemical Formaldehyde equivalent
Ethanol C₂H₆O 45 %
Sulphur dioxide SO₂ 12 %
Phenol C₆H₆O 7 %
Carbon monoxide CO 1 %
Molecular hydrogen H₂ 0.1 %
Chlorine Cl₂ -3%
Acetone (C₃H₆O), ammonia (NH3), CO₂, water H₂O vapours have no reaction;
C2H4, H₂S, NO, and NO₂ No data available
