PCE Instruments new product release:

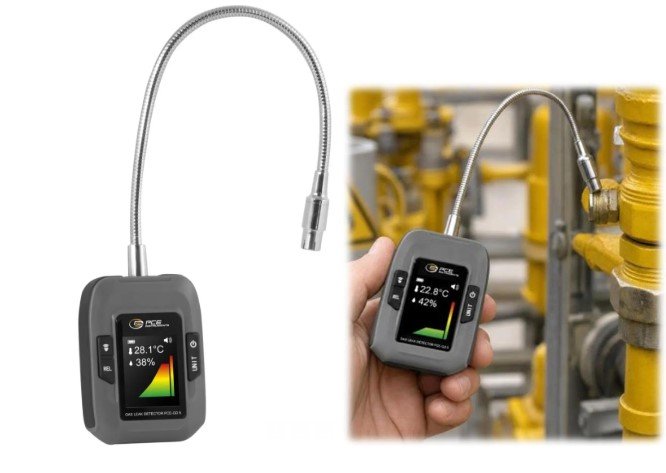

PCE-GD 5: Flammable Gas Leak Detector

Specification:

• Measuring medium: Methane, Hydrogen, Natural gas, Liquified petroleum gas
• Detection of flammable gases using a color scale
• Visual and audible alarm
• Preheating time approx. 10 s
• Reaction time: < 10 s
• Flexible 250 mm probe
• Humidity: 0 ... 100%
• Temperature: -40 ... +80 °C

Application:    Ideal for Gas pipeline inspection, Building & HVAC maintenance, Workshop maintenance, Gas installation testing etc

PCE Instruments new product release:

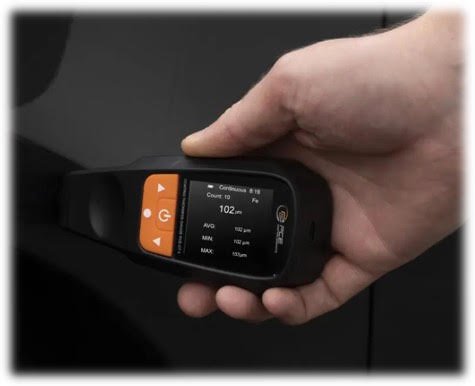

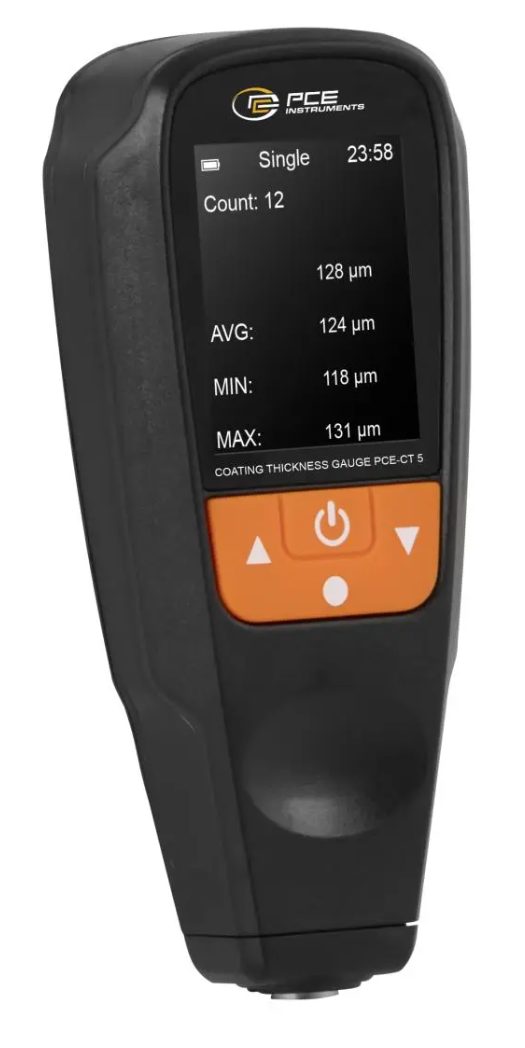

PCE-CT 5: Coating Thickness Tester

Specification:

• Thickness Range: 0…2000 µm
• Accuracy: ≤ ±(3 % v.Mw. +2 µm)
• Units: µm, mm, mil
• Automatic detection of Fe/ NFe materials
• Automatic selection of the measurement method : Magnetic induction (Fe) / Eddy current (NFe)

Application:    Ideal for checking paintwork, coatings, corrosion protection layers, and electroplated layers in quality control, manufacturing, maintenance, and materials testing.

PCE Instruments new product release:

PCE-SPM 5: Photovoltaic I-V Curve Tracer

Specification:

• DC Open circuit voltage (Voc): 0 ... 60 V / 0.001 V / ±1%
• DC MPP voltage ((Umpp)): 0 ... 60 V / 0.001 V / ±5%
• DC Short-circuit current (Isc): 0 ... 30 A / 0.001 A / ±1%
• DC MPP current (Impp): 0 ... 30 A / 0.001 A / ±5%
• Max Power: 0 ... 800 W / 0.001 W / ±5%
• Temperature: 0 ... 60 °C
• IV and PV measurement with automatic and manual modes
• Display of characteristic curves and measured values ​​(IV/PV)
• Color-coded curve display with table
• Display of peak data and electrical parameters

Application:    Ideal for Solar panel performance testing, I-V and P-V curve analysis, PV module output verification, Solar panel troubleshooting & fault detection, PV installation commissioning and Routine maintenance of photovoltaic systems.

PCE Instruments new product release:

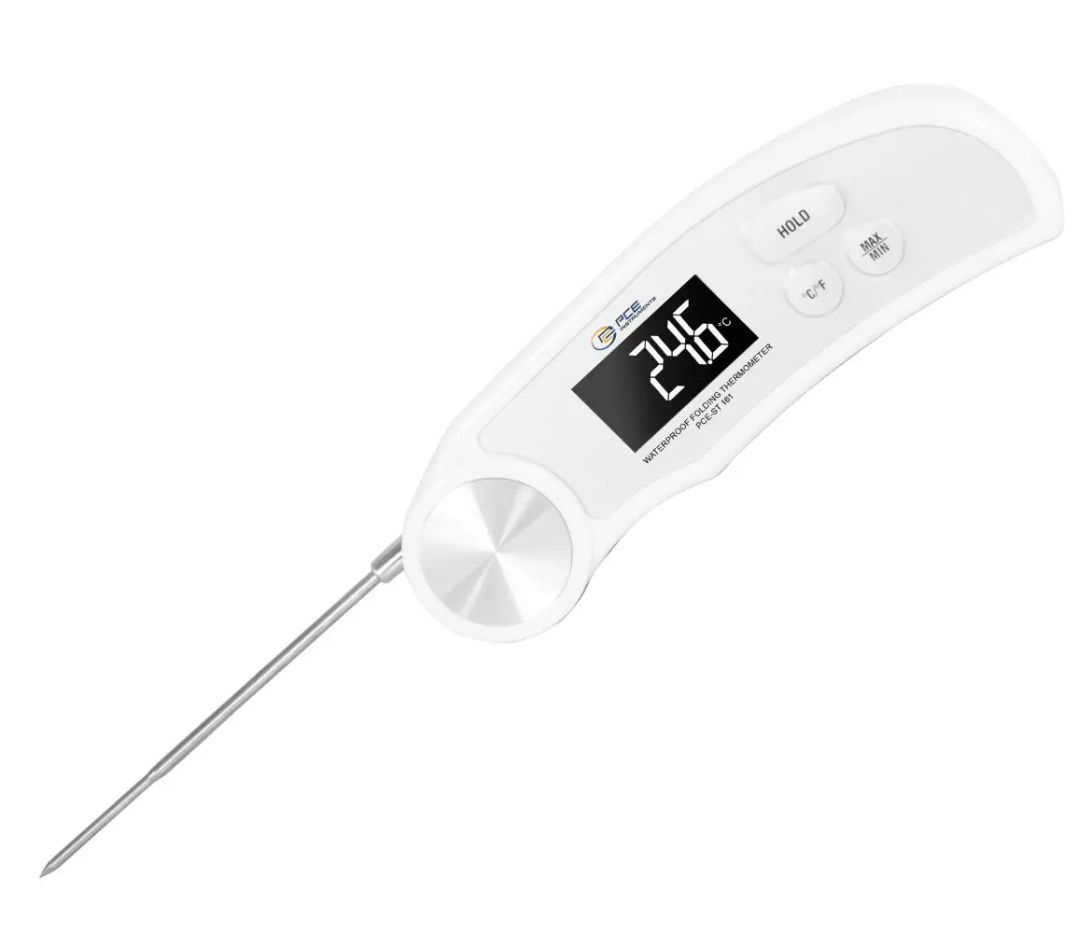

PCE-ST 161: Waterproof Folding Thermometer

Specification:

• Measuring range: -50 °C to +290 °C
• Accuracy at normal range: ±0.5 °C
• Probe length: 93 mm
• Switchable between °C and °F
• Response time: 2 s
• Functions: MAX, MIN and HOLD modes
• Rubberized surface for non-slip handling
• HACCP compliant
• Protection class IP67

Application:    Ideal for Food & Beverage,  Food Hygiene & HACCP, Laboratory & Quality Control, Industrial / General Temperature Checks

PCE Instruments new product release:

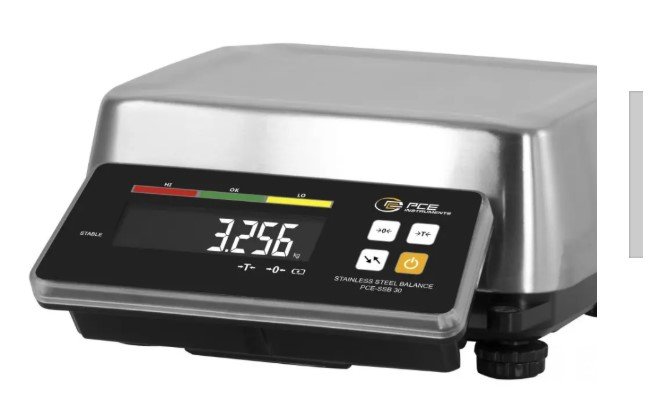

PCE-SSB 30 : Stainless Steel Balance

Specification:

• Measuring range: 30 kg
• Resolution: 0.005 kg
• Alarm function for upper and lower weight limits
• Peak, stable and average hold function
• Manual and automatic tare deduction function
• Units: kg, g, lb, oz
• Alarm: visual, acoustic
• Weighing Platform: 220x190 mm
• Robust, waterproof stainless-steel case
• Protection class IP68

Application:    Ideal for food industry, commercial kitchens, manufacturing, quality control, incoming goods, shipping and packaging, warehousing and logistics etc
