PCE Instruments releases new product:

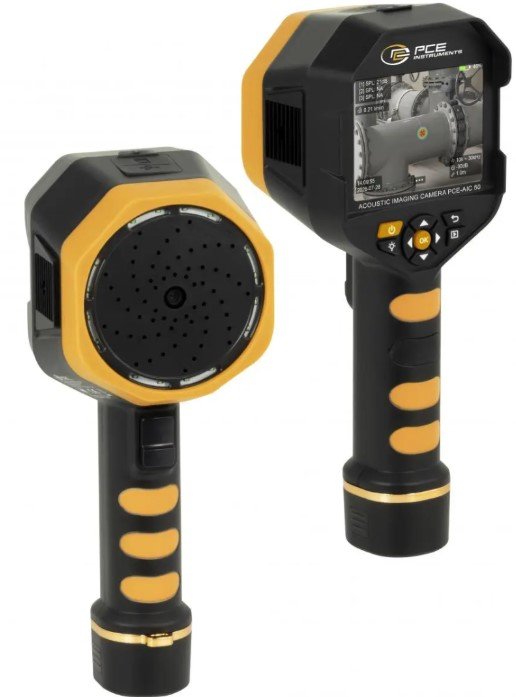

• PCE-AIC 50: Acoustic Imaging Camera (Leak Detection)

Specification:

• Frequency: 2..100 kHz
• Display: 3.5 inches ; 640x480
• Camera resolution : 640x480
• Field of View: 72°±3°
• Pixel Size: 12 µm
• Frame Rate:  ≥ 25 FPS for acoustic imaging
• Focal Length: Fixed 3.9 mm
• Detection Range: 0.3 ... 50 m
• Color palette: Rainbow, Iron Red, Hot White
• Gas leakage and leakage loss estimation integrated
• Wireless image transmission

Application:

• For preventive maintenance, industrial inspections, and condition monitoring of machines and systems.
• Typical applications include locating compressed air, gas, and vacuum leaks; detecting partial discharges in electrical systems; troubleshooting mechanical components; and analyzing noise sources in production, energy supply, building technology, and research.
• The rapid visualization of sound events reduces maintenance efforts, minimizes energy losses, and sustainably prevents downtime.

PCE Instruments releases new product:

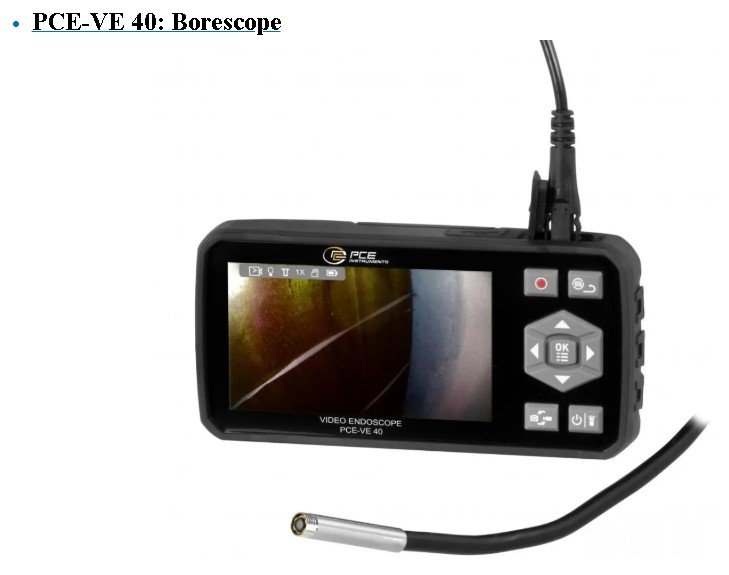

• PCE-VE 40: Borescope

Specification:

• Cable length: 3 m
• Camera head: 5.5 mm
• Image and video recordings
• Camera resolution 1280 x 720
• Digital zoom 1×, 2×, 3×
• 8 GB Micro-SD card
• various probe attachments
• PCE-VE 50N: with Wi-Fi function for data transfer (Android)

Application:    For non-destructive visual inspection of engines, pipelines, machines, and cavities without disassembly.

PCE Instruments releases new products:

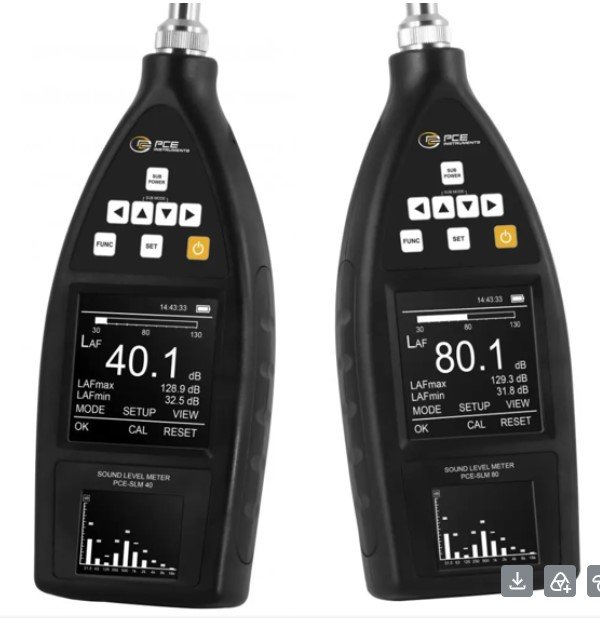

• Octave Band Sound Analyzer

Specification:

Highlights:

• Dual Display( Sound and  Octave analysis graph)

• Measuring Range: 30 ... 130 dB
• Frequency range: 10 Hz to 20 kHz
• Class 1 and Class 2
• 24-hour measurement, 1/1 octave band, 1/3 octave band, Audio recording in .wav file
• Frequency weighting: A, C, Z, Low frequency
• Time rating: Fast (F), Slow (S), Impulsive (I)
• Integral mean, parallel measurement, statistical analysis
• AC/DC output and USB-C interface
• PC software
• Standards:   GB/T 3785.1-2010, IEC 61672-1:2013

Application:    For noise measurements in occupational safety, machine and plant monitoring, as well as for environmental and emission measurements.

PCE Instruments releases new product:

• PCE-SM 5C: Food Salinity Meter

Specification:

• Food safe ceramic electrode
• Measuring range: 0.01 ... 5%
• Resolution: 0.01%
• Accuracy: ± 0.05% FS (< 2%), ± 0.1% FS (2% ... 5%)
• Temperature measuring: 1 ... 99 °C
• Automatic temperature compensation

Application:    Ideal for applications in food processing, cooking, aquariums, or laboratories.
