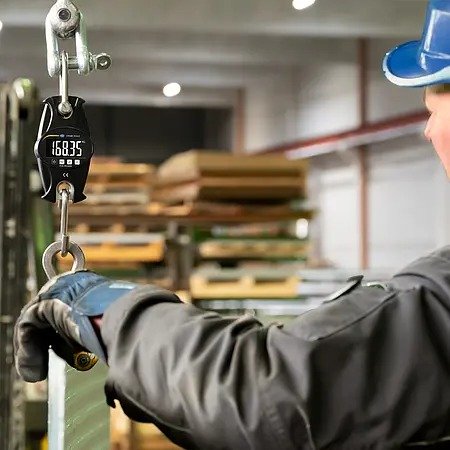

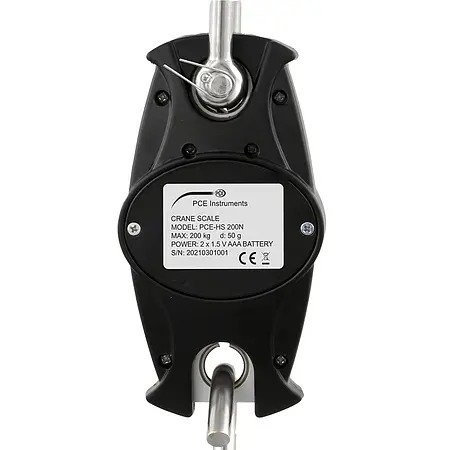

The crane scale is available in the measuring ranges 0 ... 200 kg / 0 ... 440.9 lbs. With an accuracy of ± 1% of the measuring range, the hanging balance is a precise measuring device. The LCD display with a digit height of 22 mm in combination with the background lighting enables the readings of the crane scales to be read even under difficult conditions. The sturdy metal housing of the hanging balance enables it to be used in harsh environments.
In addition to the unit kg, the measured values of the crane scale can also be displayed in lb and N. The hanging balance can freeze the currently displayed measured value using the "Hold" function. Adapters, product trays and other weighing accessories have their own weight, which is weighed and displayed by the crane scale. For simplified weighing, the dead weight of the additionally attached devices can be tared off the crane scales by pressing a button.
The crane scale is operated with two 1.5V AAA batteries and can therefore be used mobile. To save the batteries, the crane scale has an automatic switch-off after 15 minutes of inactivity. Optionally, the hanging balance can be equipped with an ISO calibration certificate from PCE Instruments.
Highlights
- Accuracy ± 1% of full scale
- Robust metal housing
- Backlit LCD display
- Optionally with ISO calibration certificate
Specification
| Measuring range | 0 ... 200 kg / 0 ... 440.9 lbs |
| Resolution | 50 g / 1.7 oz |
| Accuracy | ±1 % of measuring range |
| Further specifications | |
| Housing material | metal |
| Digit height | 22 mm / 0.86" |
| Automatic shutdown | after 15 minutes of inactivity |
| Backlight | automatic shutdown |
| after 10 seconds of inactivity | |
| Units | kg, lb, N |
| Overload display | "O_Ld" |
| Low battery indicator | "LO" |
| Power supply | 2 x 1.5 V AAA batteries |
| Operating conditions | 5 … 35 °C / 41 ... 95°F, <90 % RH, |
| non-condensing | |
| Dimensions | 158 x 84 x 37 cm / 6.2 x 3.3 x 1.5" |
| Weight | 618 g / 1.4 lbs |
