Crane Scale
10 Ton, 10000 kg, 22046 lb weighing capacity / Displays measurement values in kilograms (kg) or pounds (lbs) / Includes hook, shackle and remote control

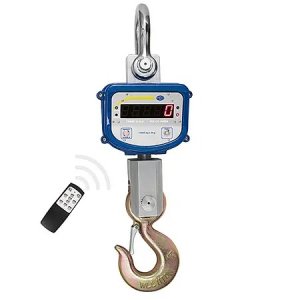

PCE-CS 10000N is a digital battery-powered heavy-duty industrial crane, lifter, suspended or hanging scale, dynamometer, electronic balance or weighing hook that displays measurement values in kilograms (kg) or pounds (lbs). The scale comes factory calibrated and includes a hook, shackle and remote control. For an additional fee, the scale can be calibrated according to ISO standards.
Designed for industrial use, this robust hanging crane scale is backed by a two-year warranty against manufacturer defects.
Highlights
- Maximum weighing capacity: 10000 kg / 22046 lbs ≈ 10 Tons
- Resolution: 5 kg
- Tare range: 100% full scale
- Displays measurement values in kilograms (kg) or pounds (lbs)
- Comes factory calibrated (see accessories for optional ISO calibration)
- Includes hook, shackle and remote control
- Features zero, tare, hold, sum / accumulation, battery voltage indication and adjustable brightness
functions
- Resolution: 5 kg
- Tare range: 100% full scale
- Displays measurement values in kilograms (kg) or pounds (lbs)
- Comes factory calibrated (see accessories for optional ISO calibration)
- Includes hook, shackle and remote control
- Features zero, tare, hold, sum / accumulation, battery voltage indication and adjustable brightness
functions
Specification
| Maximum capacity | 10000 kg / 22046 lbs ≈ 10 Tons |
| Minimum weight | 100 kg / 220.5 lbs |
| Resolution | 5 kg |
| Standard | OIML class III |
| Zero range | 4 % full scale (FS) |
| Tare range | 100 % FS |
| Settling time | ≤ 10 seconds |
| Overload indication | 100 % FS + 9e |
| Max. safety load | 125 % FS |
| Ultimate load | 400 % FS |

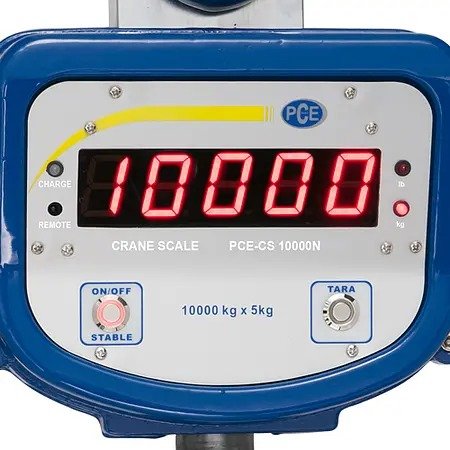

| Display | 5-digit LCD/LED, 30 mm / 1.18" character height |
| Battery | 6 V / 7 Ah fully-sealed lead-acid battery |
| Battery life | ≥ 50 hours |
| Battery charger | 9 V DC / 1000 mA |
| Remote control range | 15 m / 49.2' |
| Remote control battery | 2 x 1.5 V AAA batteries |
| Operating temperature | -10 ... +40 °C / +14 ... +104 °F |
| Operating humidity | ≤ 85 % RH under +20 °C / +68 °F |
| Dimensions | 264 x 206 x 745 mm / 10.4 x 8.1 x 29.4" |
| Weight | 30 kg / 66.2 lbs |
