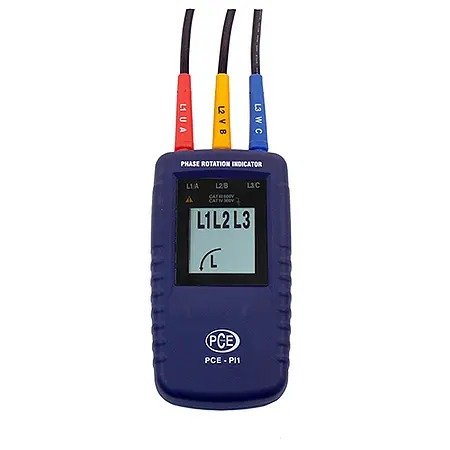

Phase Rotation Meter PCE-PI1
Inexpensive and easy-to-use phase rotation meter
Inexpensive and easy-to-use phase rotation meter
This phase rotation meter PCE-PI1 has a robust housing with a large LCD display so you can easily and conveniently determine the phase and motor rotation direction. Furthermore, any problems in individual phases are shown on the display of the phase rotation meter. The phase rotation meter meets the safety standard CAT III 600 V, IEC-61010. The phase rotation meter is ideal for determining the phase rotation in all areas where three-phase power supplies are used to feed motors, drives and electrical systems. The phase rotation meter has a voltage range of up to 690 VAC. Use of the phase rotation meter will help prevent damage to engines and equipment that may arise due to incorrect direction of rotation.
Highlights
- easy operation
- no batteries required
- robust alligator clips for easy connection
- 3-phase measurements of 40 ... 690 V AC
- safety: IEC 61010, CAT III 600 V
- protection class IP-40
- large LCD display
- no batteries required
- robust alligator clips for easy connection
- 3-phase measurements of 40 ... 690 V AC
- safety: IEC 61010, CAT III 600 V
- protection class IP-40
- large LCD display
Specification
| Technical Specifications | |
| Measuring range | 40 ... 690 VAC |
| Frequency range | 15 ... 400 Hz |
| Current consumption | 1 mA |
| Test current per phase | 1 mA |
| Environmental conditions | 0 ... 40 °C |
| Housing protection | IP 40 |
| Test leads with robustalligator clips | 3 x 130 cm |
| Dimensions | 130 x 69 x 32 mm |
| Weight | 130 g |
| Protection / standardization | IEC 61010 / EN61010 IEC 61557-7 / EN 61557-7 |
