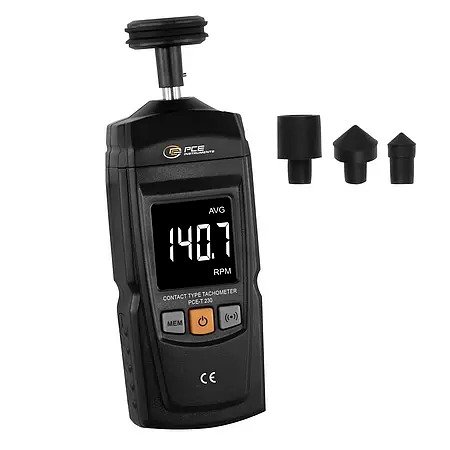

Tachometer PCE-T 230

Category: Tachometer
Tachometer / optical speed measurement / measuring functions: minimum, maximum, last, average value / automatic power off / battery operation

Our Tachometer with a measurement range of 0.5 ... 19999 rpm and a resolution of 0.1 rpm enables accurate and reliable measurements in many applications. With a sampling rate of 0.8 seconds, the Tachometer delivers quick results. It offers multiple measurement functions to choose from, including MAX, MIN, LAST and AVG, to capture different aspects of rotational speed measurement. The units can be flexibly selected between rpm, m/min and ft/min.

The Tachometer has a low battery indicator and is powered by two AAA batteries. Automatic power off after 60 seconds helps to save energy. The Tachometer fits compactly in the hand and can be operated using just three keys. The 1.8-inch LC display ensures that the measured values are clear and easy to read.

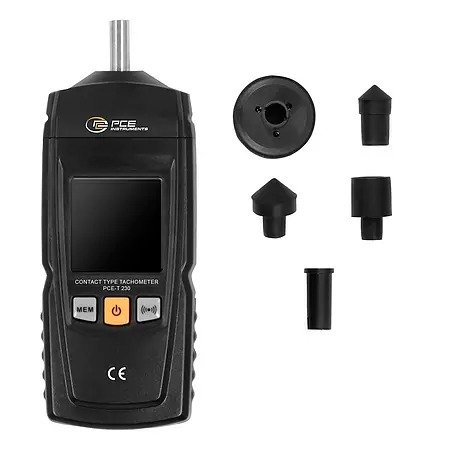

In addition to the Tachometer, the delivery scope includes an adaptor and four additional rubber pads for various measurements. These accessories extend the device's range of applications and make it a practical tool for users in various industries.

Highlights

- measuring functions: MAX, MIN, LAST, AVG
- units: rpm, m/min, ft/min
- sampling rate: 0.8 s
- automatic power off after 60 s
- 1.8-inch LC display

Specification

Optical speed
Measurement range up to   0,5 ... 9999 RPM
Resolution   0,1 RPM
Accuracy   0.05 % of Rd + 1 digit

Optical speed
Measurement range up to   1000 ... 19999 RPM
Resolution   1 RPM
Accuracy   0.05 % of Rd + 1 digit

General technical data
Measuring functions   MIN, MAX, LAST, AVG
Units   ft/min, m/min, RPM
Display type   LCD
Display size   1,8 Inch
Measuring rate   0,8 s
Automatic power-off   60 s
Menu language   English, English (GB)
Protection class (device)   IP20
Weight   110 g
Operating conditions   0 ... 50 °C , 10 ... 90 % RH
Storage conditions   -10 ... 80 °C , 10 ... 75 % RH
(Rechargeable) battery   2 x 1,5 V AAA battery , Zinc carbon
Capacity   400 mAh
Dimensions ( L x W x H )   144 x 51 x 30 mm
