(max. 16 GB SDHC) / large LCD display / different units can be selected / battery or
mains operation (optional) possible

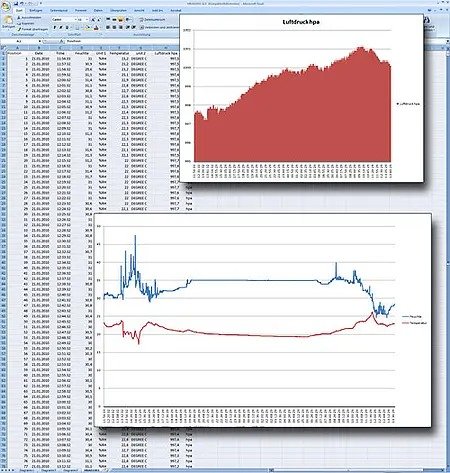

The values recorded in the data logger function can of course also be transferred back to the PC and evaluated (.xls file on the SD card). You can also check the columns of numbers for outliers and, in the case of the food industry, quickly see whether and, if so, how long the cold chain was interrupted. The internal real-time clock with date allows the user to precisely assign the events. The measuring rate is freely adjustable. The electronics of the data logger are protected against impacts and robust handling in industry.
Highlights
- Flexible internal real-time data storage via SD memory card (1 ... 16GB)

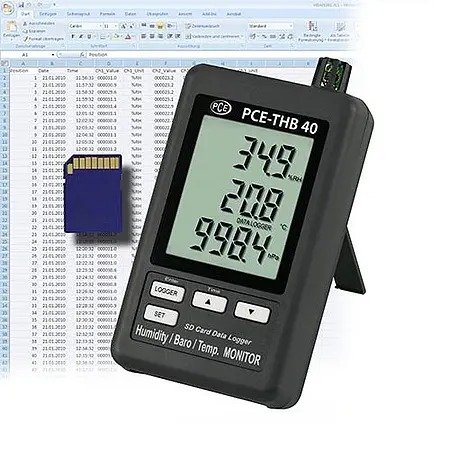

- The saved data is saved directly as an Excel file on the SD card
- Selectable pressure unit: hPa, mmHg and inHg
- Low battery display
- Large LCD display
- Adjustable measuring rate
- Easy to use
- Robust housing
- Optional software kit for online transfer to a PC or laptop (no software is required to evaluate the stored data)
Specification
| Measurement ranges | |
| Temperature | 0 ... 50°C / 32 ... 122°F |
| Relative humidity in air | 10 ... 90% RH |
| Barometric pressure | 10 ... 1100 hPa / 7.5 ... 825 mmHg / 0.29 ... 32.48 inHg |
| Resolution | |
| Temperature | 0.1°C / 0.18°F |
| Relative humidity in air | 0.1% RH |
| Barometric pressure | 0.1 hPa: 10 ... 1000 hPa, 1 hPa: 1001 ... 1100 hPa / 0.1 mmHg / 0.01 inHg |
| Accuracy | |
| Temperature | ± 0.8°C / ± 1.4°F |
| Relative humidity in air | ± 4% RH: < 70% RH ± ( 4% reading + 1% RH): ≥ 70% RH |
| Barometric pressure | ± 2 hPa: 10 ... 1000 hPa, ± 3 hPa: 1001 ... 1100 hPa / ± 1.5 mmHg / ± 0.1 inHg |
| Sampling interval | 5,10, 30, 60, 120, 300 or 600 seconds, or automatic (it stores data when there is an alteration of the value of ± 1º, ±1 % RH or ± 1 hPa) |
| Memory | SD card memory up to 16 GB (an SD card is included in the delivery contents) |
| Operating temperature | 0 ... 50ºC / 32 ... 122ºF < 90% RH |

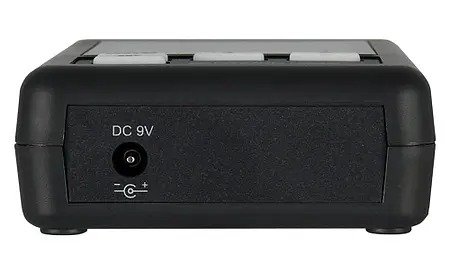

| Power | 6 x 1.5V AAA batteries or 1 x 9V electric power supply (optional) |
| Dimensions | 132 mm x 80 mm x 32 mm / 5.1 in x 3.1 in x 1.3 in |
| Weight (with batteries) | 285 g / < 1 lb |
