Airflow Meter PCE-AM 40

Category: Air Flow Meter
Airflow Meter with wind speed, volume flow and temperature measurement / MAX, MIN, AVG, HOLD functions / Memory for 1,000 measured values / Micro-USB data transfer / Real-time analysis / 2.8 inch LCD display / Battery operation

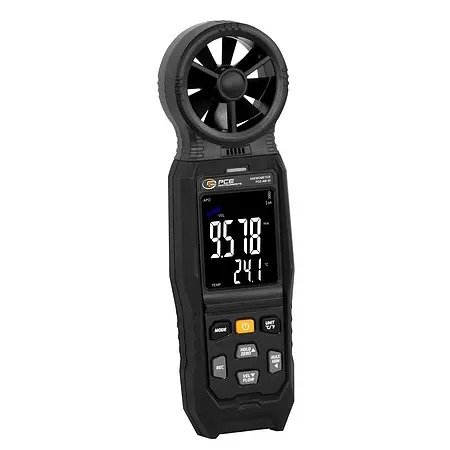

The Airflow Meter is a professional measuring device for the precise measurement of wind speed, air flow and temperature. It is ideal for applications in industry, trade, research or hobby. The Airflow Meter supports various units such as m/s, km/h, knots, mph, ft/min and ft/s - with a measuring range of 0.06 to 45 m/s.

Thanks to practical functions such as max, min, average (AVG) and hold, the Airflow Meter is easy to operate. Individually adjustable upper and lower limit values enable precise monitoring - a visual and audible alarm warns you if these are exceeded. The repeat accuracy is 2%, with a measuring rate of 2 measurements per second.

The Airflow Meter has an integrated data memory for up to 1000 measured values, which can be conveniently transferred to a PC via the USB interface. The associated software is included in the scope of delivery and allows live transmission, recording and analysis of the data in real time. The recorded measurement data can be saved, printed or exported - ideal for documentation and further processing. The storage interval can be set individually (5 s, 10 s, 30 s, 1 min, 30 min, 1 h, 24 h). The Airflow Meter switches off automatically after 15 minutes of inactivity - this function can be deactivated if required.

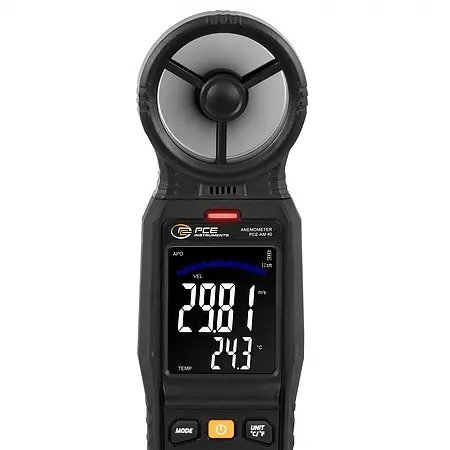

The easy-to-read 2.8-inch LCD display shows measured values digitally and on an analogue bar scale. The Beaufort value (BFT) is displayed numerically. The Airflow Meter can be operated both with batteries and via the micro USB interface - for maximum convenience and flexibility.

Highlights

- Wind speed up to 45 m/s
- Units: m/s, km/h, knots, mph, ft/min, ft/s
- Temperature measurement
- MAX, MIN, AVG, HOLD functions
- Alarm: audible and visual
- Memory for up to 1000 readings
- Interface: Micro-USB
- LCD display 2.8 inch
- Operation: AA batteries or USB
- PC software

Specification

Speed
Measurement range up to   0,06 ... 45 m/s
Resolution   0.001 m/s
Accuracy   ±(2% of Rd +0.2)

Speed
Measurement range up to   1 ... 162 km/h
Resolution   0.001 km/h
Accuracy   ±(2 % of Rd +0.7)

Speed
Measurement range up to   10 ... 8858 ft/min
Resolution   0.001 ft/min
Accuracy   ±(2 % of Rd +20)

Speed
Measurement range up to   1 ... 147,6 ft/s
Resolution   0.001 ft/s
Accuracy   ±(2 % of Rd +0.2)

Speed
Measurement range up to   0,1 ... 84,48 knots
Resolution   0.001 knots
Accuracy   ±(2 % of Rd +0.2)

Speed
Measurement range up to   1 ... 100,6 mph
Resolution   0,001 mph
Accuracy   ±(2 % of Rd +0.2)

Volume flow
Measurement range up to   0 ... 9999 m³/min
Resolution   0,001 m³/min
Accuracy   ±(2 % of Rd +0.2)

Volume flow
Measurement range up to   0 ... 9999 ft³/min
Resolution   0,001 ft³/min
Accuracy   ±(2 % of Rd +0.2)

Volume flow
Measurement range up to   0 ... 9999 m³/s
Resolution   0,001 m³/s
Accuracy   ±(2 % of Rd +0.2)

Temperature
Measurement range up to   0 ... 45 °C
Resolution   0,1 °C
Accuracy   ±2 °C

Temperature
Measurement range up to   32 ... 113 °F
Resolution   0,1 °F
Accuracy   ±3.6 °F

General technical data
Measuring functions   MIN, MAX, HOLD, AVG
Units   ft³/min, m³/min, m³/s, m/s, km/h, ft/min, ft/s, mph, Bft, knots, °C, °F
Display type   LCD
Display size   2,8 Inch
Measuring rate   2 x per second
Storage medium   Internal memory
Storage capacity   1000 Values
Storage interval from   5 s
Storage interval to   24 h

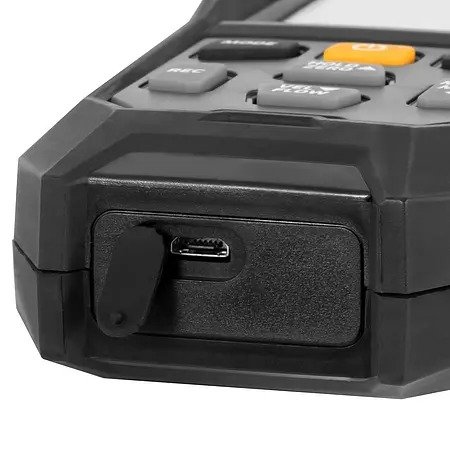

Interface   Micro-USB

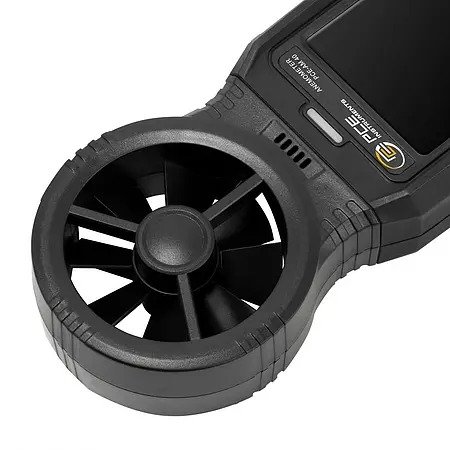

Sensor   Vane
Automatic power-off   15 min
Automatic power-off can be deactivated   Yes

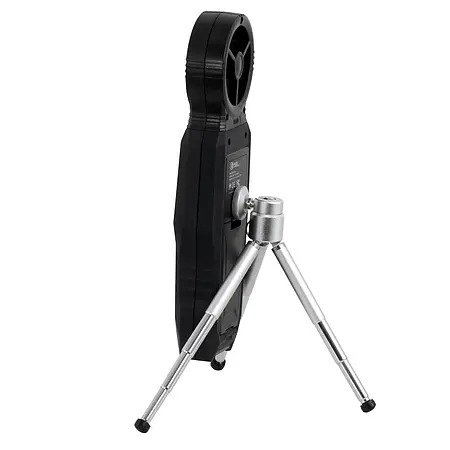

Tripod thread   1/4 inch
Alarm   optical, Acoustic
Repeat accuracy   2 %
Display range   9999 counts
Alarm settings   0 ... 45 m/s
Protection class (device)   IP20
Power supply   5 V DC
(Rechargeable) battery   3 x 1,5 V AA battery , Alkali-manganese
Capacity   3000 mAh
Operating conditions   -10 ... 50 °C , 0 ... 80 % RH
Storage conditions   -10 ... 50 °C , 0 ... 70 % RH
Dimensions ( L x W x H )   240 x 70 x 33 mm
Weight   212 g
