Heavy Duty Scale PCE-MS U3T-1-M / Verifiable / Max. capacity 3000 kg / Verification value: 1 kg / Incl. verification (conformity assessment)

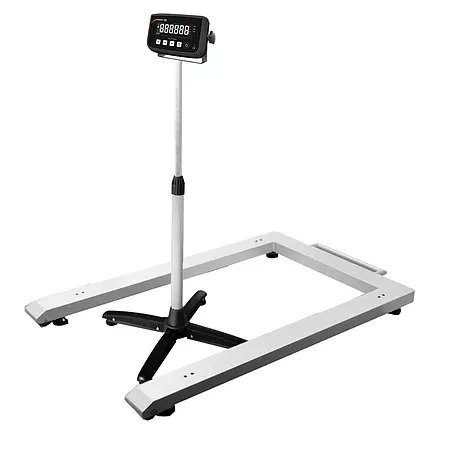

The heavy duty scale consists of the U-shaped weighing platform and the display unit connected via a 5 m long cable. The U-shape makes it easy to load with an ant or hand pallet truck. The dimensions of the inner surface of the U-shape are designed for the size of Euro pallets with 120 x 80 cm.
Thanks to the long connection cable, the display unit can also be placed at a greater distance from the weighing surface, on a tripod, on a wall or on a table. The heavy duty scale has wheels and a carrying handle for easy transport. The plug connection of the connection cable can be easily removed for transport.
The heavy duty scale can be operated by the internally installed battery or by the power pack included in the scope of delivery. In battery mode, operating times of up to 25 hours can be achieved. The inverted display and the 28 mm digit height make it easier to read the weighing values.
The verified scale is delivered with a conformity assessment. The conformity assessment replaces the first verification. The conformity assessment is carried out in the largest possible geographical zone around the planned installation site of the scale and ensures compliance with the strict verification error limits within this zone.
Thanks to the long connection cable, the display unit can also be placed at a greater distance from the weighing surface, on a tripod, on a wall or on a table. The heavy duty scale has wheels and a carrying handle for easy transport. The plug connection of the connection cable can be easily removed for transport.
The heavy duty scale can be operated by the internally installed battery or by the power pack included in the scope of delivery. In battery mode, operating times of up to 25 hours can be achieved. The inverted display and the 28 mm digit height make it easier to read the weighing values.
The verified scale is delivered with a conformity assessment. The conformity assessment replaces the first verification. The conformity assessment is carried out in the largest possible geographical zone around the planned installation site of the scale and ensures compliance with the strict verification error limits within this zone.
Specification
| Scale type | single-range scale |
| Weighing range [Max] | 3000 kg / 6613 lb |
| Resolution [d] | 1 kg / 2.2 lb |
| Weighing unit | kg |
| Verification value [e] | 1 kg / 2.2 lb |
| Verification class [e] | M III |
| Minimum load [Min] | 20 kg / 44 lb |
| Taring range | Multiple tare over the entire weighing range, automatic and manual tare deletion possible |
| Weighing surface [WxD] | U-shape 800 x 1250 mm / 31.5 x 49.2" |
| Interface | USB-B bidirectional |
| Display | LCD, white on black |
| Digit size [WxH] | 15 x 28 mm / 5.9 x 11.0" |
| Power supply | internal lead battery 6 V / 4.5 Ah / 101 x 70 x 50 mm / 3.9 x 2.7 x 1.9" / 820 g / 28.9 oz external power supply 7.8 V / 1.2 A AC / 110 V - 230 V |
| Battery life | up to 25 hours (continuous operation) |
| Battery saving mode | yes after 30 seconds without use (can be deactivated) |
| Load cell | 4x 2500 kg / 5511 lb / IP68 |
| Operating temperature | -10 ... +40 °C / 14 ... 104 °F |
| Weight | 65 kg / 143 lb |
