Closing force measuring system for sunroofs, window regulators and tailgates

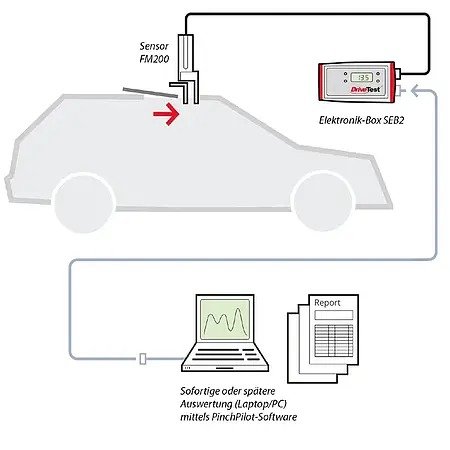

When it comes to measuring setups in testing and production, quick and easy execution is of great importance. For this purpose, Drive Test has developed software that drastically reduces the measurement process and the effort required for documentation. With just a few operating steps, the measurements can be loaded into a PC, evaluated, exported and documented. We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test procedure.
Highlights
- Precise measurements - due to friction-free guidance and platform load cell
- Robust design
- Ease of use – single button operation or remote via Microsoft® DLL
interface or National Instruments ® LabVIEW library

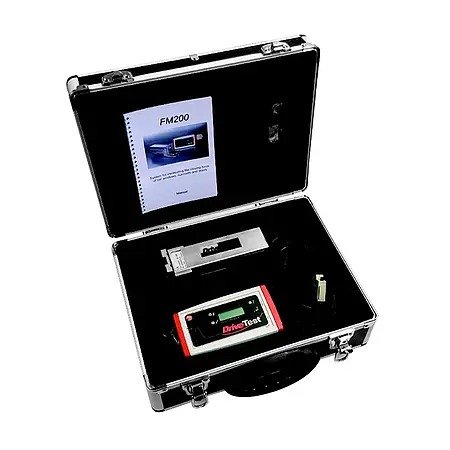

- Complete scope of delivery - including high-quality transport case and software
- Professional, comprehensive PC software – PinchPilot
- Comprehensive user support - calibration service, standard change service ensures the
application of the latest version of the standard
- Flexible adjustment - made possible by a variety of available force introductions:
Customizations also available from DriveTest
Specification
| FM 200/20 | |
| Measuring range | up to 300 N |
| Accuracy | +/– 3 N or 3% of reading |
| Stiffness | 20 N/mm |
| Gap width | minimum 4 mm / 0.15" |
| Area | 50 x 50 mm / 1.9 x 1.9" |
| Measuring principle | DMS transducer |
| Dimensions | 240 x 85 x 60 mm / 9.4 x 3.3 x 2.3" |
| Weight | 1.3 kg / 2.8 lb |

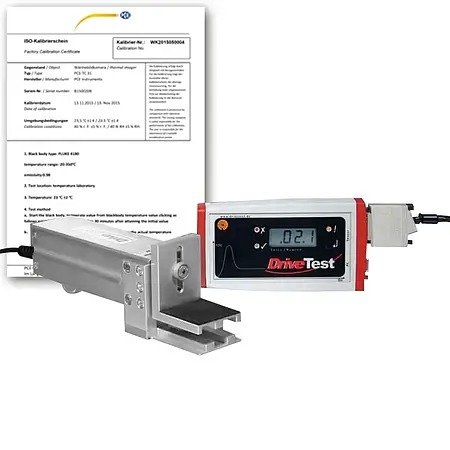

| Display device SEB2 | |
| - Data logger unit with LCD display and LED status indicators, control button, serial interface |
|
| - Optional PC-controlled measurement | |
| - 9 V battery supply | |
| - Real time clock | |
| - Memory for 100 measurements | |
| - Sensor and PC interface | |
| - Peak value display and effective power display | |
| - Rating display i. O./n. i. O. | |
| PC evaluation software PinchPilot (detailed description in the accessories) | |
| - Multilingual (DE, EN, IT, FR, ES) | |
| - Graphic representation of the force curve | |
| - Calculation of important parameters | |
| - Evaluation according to different guidelines (standards) | |
| - Possibility of entering self-defined guidelines | |
| - Log printout | |
| - Data export (Excel, CSV, PDF) - System requirements software PinchPilot (see tab Software/App) |
|
