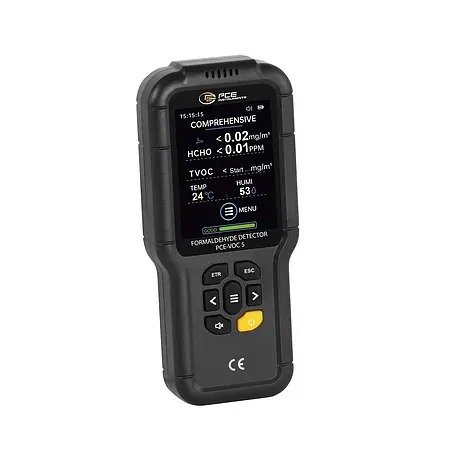

Formaldehyde Meter / Formaldehyde Tester PCE-VOC 5

Formaldehyde Meter / Formaldehyde Tester / Real-time measurement of HCHO, TVOC, temperature & humidity / Audible alarm / 2.8 inch colour display / Memory

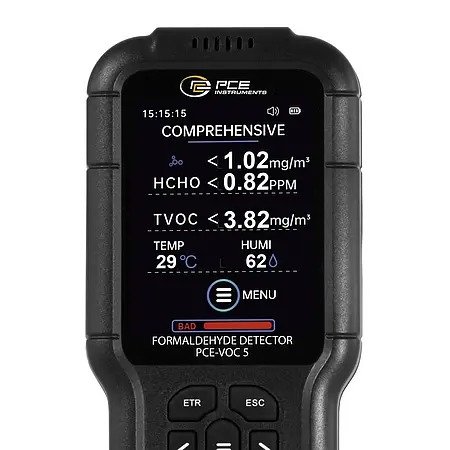

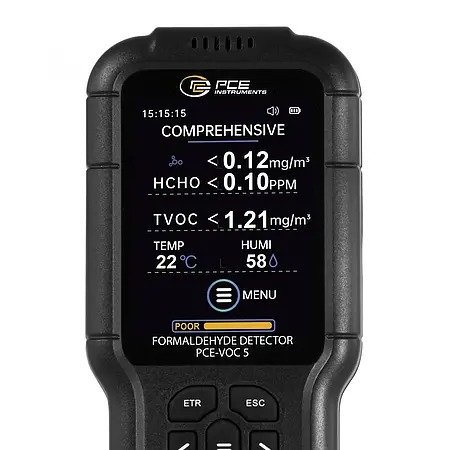

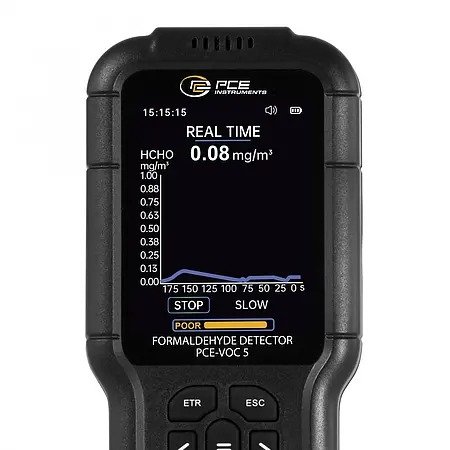

The Formaldehyde Meter / Formaldehyde Tester is a versatile device for monitoring the air quality in indoor spaces such as homes, offices, workshops, schools or public facilities. It is used for the simultaneous measurement of formaldehyde (HCHO), volatile organic compounds (TVOC), ambient temperature and relative humidity. The Formaldehyde Meter / Formaldehyde Tester has a 2.8-inch color display that shows all measured values in real time and also visually assesses the air quality in three stages - green for "good", yellow for "poor" and red for "very poor". The Formaldehyde Meter / Formaldehyde Tester also has an acoustic alarm function with adjustable threshold values and sound types, which is triggered when defined measured values are exceeded.

For data storage, the device offers space for up to 200 measuring points on 5 pages, which corresponds to a total capacity of 1000 measurements per measured variable. The values for formaldehyde, TVOC and temperature are stored. The storage intervals and the number of collection points can be set individually, whereby the stored data can only be retrieved at any time via a playback function in the device. Other functions include a real-time clock, battery status display, adjustable measuring rate, automatic switch-off time, adjustable screen brightness and the option of active fan control. The temperature unit can be switched between Celsius and Fahrenheit.

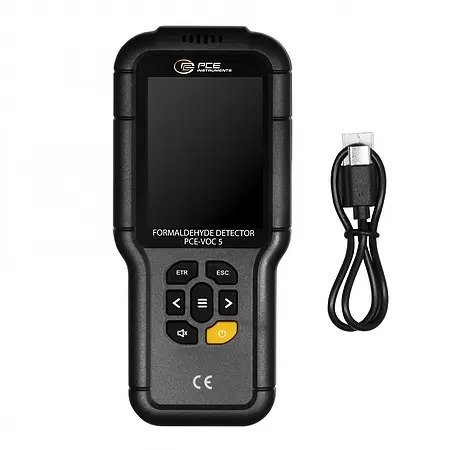

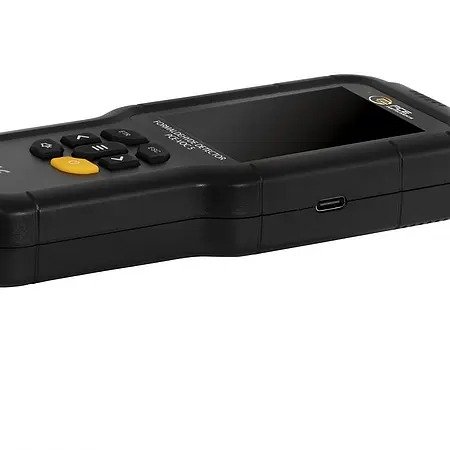

The Formaldehyde Meter / Formaldehyde Tester is powered by an integrated 3.7V Li-Po battery and charged via a USB type C cable. The charge status is shown on the display during operation and charging. As a compact, precise and easy-to-use Formaldehyde Meter / Formaldehyde Tester, the Formaldehyde Meter / Formaldehyde Tester is ideal for continuously monitoring indoor air quality and helps to detect potential exposure to pollutants such as formaldehyde or organic vapors at an early stage and take appropriate countermeasures.

Highlights

- Measurement of HCHO, TVOC, temperature, humidity
- Audible alarm
- Data storage
- 2.8 inch LCD color display
- Adjustable measuring rate
- Air quality display
- Active ventilation

Specification

Relative humidity
Measurement range up to   10 ... 90 % RH
Resolution   1 % RH
Accuracy   ±5 r.F.

Formaldehyde
Measurement range up to   0 ... 6,25 mg/m³
Resolution   0,01 mg/m³
Accuracy   ±5 PER CENT FS

Formaldehyde
Measurement range up to   0 ... 5 ppm
Resolution   0,01 ppm
Accuracy   ±5 PER CENT FS

TVOC
Measurement range up to   0 ... 10 mg/m³
Resolution   0,01 mg/m³
Accuracy   ±0.1 mg/m³

Temperature
Measurement range up to   0 ... 50 °C
Resolution   1 °C
Accuracy   ±1 °C

Temperature
Measurement range up to   32 ... 122 °F
Resolution   1,8 °F
Accuracy   ±1.8°F

General technical data
Display type   LC colour display
Display size   2,8 Inch
Adjustable measuring rate   0.5 ... 2 s
Storage medium   Internal memory
Storage capacity   1000 Measurements
Memory information   1000 measuring points per measured variable
Storage interval from   1 s
Storage interval to   90 s
Interface   USB-C
Operating time   5 h
Automatic power-off from...to   5 ... 30 min.
Automatic power-off can be deactivated   Yes
Alarm   Acoustic
Alarm settings   0.05 ... 0.5 mg/m³
Menu language   English, English (GB)
Protection class (device)   IP20
(Rechargeable) battery   1 x 3,7 V internal , Lithium polymer battery
Capacity   1500 mAh
Operating conditions   0 ... 50 °C , 10 ... 90 % RH
Storage conditions   0 ... 50 °C , 10 ... 90 % RH
Dimensions ( L x W x H )   150 x 67 x 23 mm
Weight   145 g
