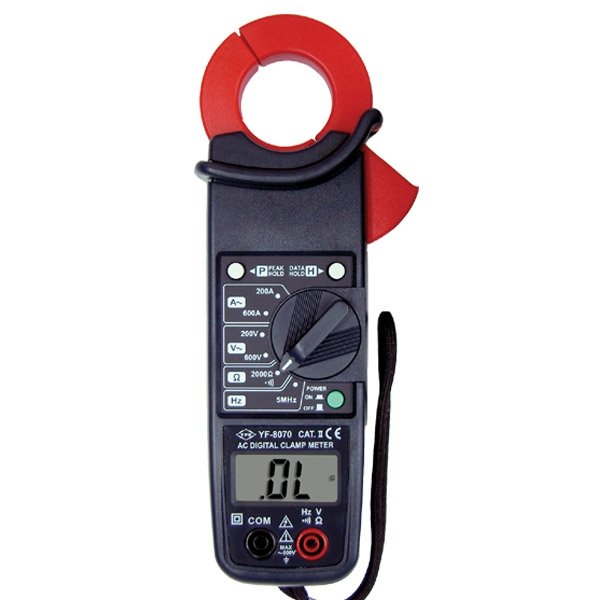

Tenmars YF-8070 AC Clamp Meter

Category: Clamp Meter
Model No.: : YF-8070
Product Description

CAT II 600V
3-1/2 digit LCD with maximum reading of 2000.
AC voltage range: 200V, 750V.
AC current range: 20A, 200A, 600A.
Resistance measurement to 2000 ohms.
Data Hold, Peak Hold.
Test Ranges: ACV, ACA, Resistance, Freq, Continuity.
Frequency. (non-contact frequency measurement.
Low battery indication.

Maximum Current

600 Amps

Display

2000 counts

Max. Conductor Size

35mm

AC Current

10mA to 600A, ±(2.0% of rdg + 5 dgts)

AC Voltage

0.1V to 750V, ±(1.2% of rdg + 3 dgts)

Resistance

1Ω to 2000Ω, ±(1.0% of rdg + 2 dgts)

Continuity Buzzer

Yes

Frequency

1Hz to 5MHz, ±(0.8% of rdg + 3 dgts)

Peak and Data Hold

Yes

Dimensions

221mm (L) x 62mm (W) x 35mm (D)

Weight

330g
