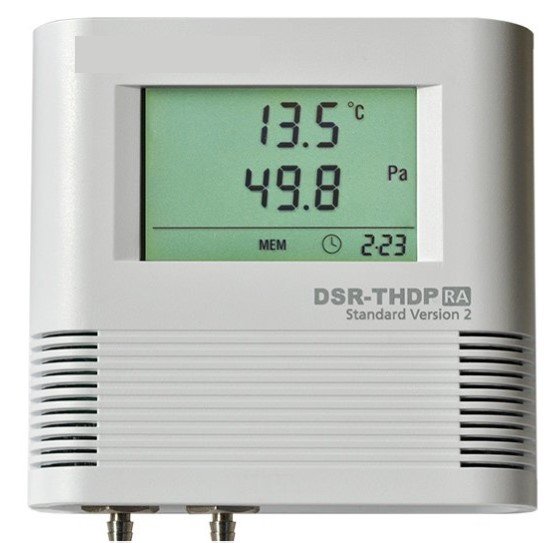

Data logger for Temperature Humidity and Differential Pressure
FEATURES
· Simultaneously measures and logs temperature, humidity and differential pressure
· Support on-line linear calibration and zero setting
· Customized differential pressure measuring range between 0 and 1000Pa
· Suitable for pharmaceutical workshops, electronic production, precision machinery and other applications
Specification
Measuring Data
| T Measuring Range |
-30℃~70℃ |
| T Accuracy |
±0.3℃(23℃±2℃),full scale ±0.5℃ |
| T Resolution |
0.1℃/0.2℉ |
| RH Measuring Range |
0%~100%RH |
| RH Accuracy |
±3%RH(10%~85%RH),other range ±5%RH(Testing Environment 23℃±2℃) |
| RH Resolution |
0.1%RH |
| DP Measuring range |
0~100.0Pa，0~200.0Pa |
| DP Accuracy |
±1.5%FS±3Pa (Testing Environment 25℃,980.0 hPa~1015.0 hPa) |
| DP Resolution |
0.1Pa |
General
| Memory Size |
10,918[A] / 21,840[B] / 180,000[C] / 360,000[D]values |
| Alarm |
High level and low level, display+beep+backlight |
| Sampling Interval |
2s、5s、10s、30s、60s、255s |
| Logging Interval |
2seconds~24hours |
| Start with Delay Time |
1~120s |
| Start Mode |
Start immediately / Time-lapse start / Timing start |
| End Mode |
Full / FIFO / Presetting units / Timing end |
| Timing Start / End |
Random start / End with format YYMMDD HHMMSS |
| Storage Temperature |
-50℃~90℃ |
| ESD Protection |
±25KV |
| Interface |
RS232 / RS485[R] / USB[U] / LAN[L] / Wireless [W、B、Z、F、G] |
| Battery |
3.6V lithium battery ×1 |
| Battery Lifetime |
Typical 1year (with a sample rate of 10 seconds),5 years （in sleep mode） |
| RTC Battery |
CR2032 |
| RTC Battery |
<12 mins/year |
| External voltage |
5~24V DC |
| Software |
ANALYSIS |
| IP Class |
IP54 |
Sensing Probe
General Feature
| Dimensions |
123×117.3×33.4mm |
| Display Area |
66×42mm |
| Housing |
ABS+PC,flame-retardant,toxicity and halogen free |
| Weight |
293g |
Temperature Accuracy
|
Humidity Accuracy
|
 |
 |
Dimensions（Unit : mm）：
|
 |
ZOG003-ZOGLAB DSR-THDPUA DATA LOGGER FOR TEMPERATURE HUMIDITY AND DIFFERENTIAL PRESSURE
