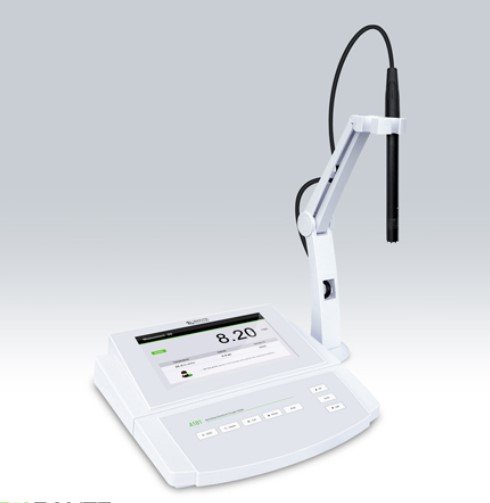

A181 Laboratory Dissolved Oxygen Meter
High-precision laboratory dissolved oxygen meter, suitable for measuring dissolved oxygen concentration and saturation, setup menu includes 15 options, accuracy 0.2 mg/L.
Features:
• 7-inch TFT display clearly shows measurement values, parameters and operation guidance.
• 1 or 2 points calibration using the air-saturated water or zero oxygen solution.
• Salinity and barometric pressure compensations eliminate measurement errors.
• Auto-read function senses and locks the measurement endpoint.
• Timed interval measurement sends data to memory or a printer.
• Limit alarm automatically alerts when measurements exceed the specified range.
• Calibration due alarm reminds user to calibrate the meter regularly.
• Calibration log shows the date, time, calibration points, etc.
• Password protection prevents unauthorized calibration and settings.
• Expanded memory stores or recalls up to 1000 data sets.
• USB communication interface enables easy data transfer to a PC.
• DAS software is capable of receiving data, recording measurements at specified intervals,
exporting data to Excel.
|
Model |
A181 |
|
|
Dissolved Oxygen |
||
|
Range |
0.00 to 20.00 mg/L |
|
|
Resolution |
0.01 |
|
|
Accuracy |
±0.2 mg/L |
|
|
% Saturation of Oxygen |
||
|
Range |
0.0 to 200.0% |
|
|
Resolution |
0.1 |
|
|
Accuracy |
±2.0% |
|
|
Other Specifications |
||
|
Calibration |
1 or 2 points |
|
|
Temperature Compensation |
0 to 50°C / 32 to 122°F, automatic |
|
|
Pressure Correction |
60.0 to 112.5 kPa / 450 to 850 mmHg, manual |
|
|
Salinity Correction |
0.0 to 50.0 ppt, manual |
|
|
Temperature Correction |
Reading ±10°C/°F |
|
|
Additional Applications |
--- |
|
|
Stability Criteria |
Standard / High-accuracy |
|
|
Measurement Modes |
Continuous / Auto-read measurement endpoint |
|
|
Timed Interval Readings |
10 / 30 / 60 seconds, 10 / 30 minutes or off |
|
|
Calibration Due Alarm |
1 to 31 days or off |
|
|
High/Low Limit Alarm |
Selectable |
|
|
Password Protection |
4 digits |
|
|
Memory |
Stores up to 1000 data sets |
|
|
Output |
USB communication interface |
|
|
Connector |
6-pin mini-DIN |
|
|
Display |
7 inch TFT LCD |
|
|
Power Supply |
12V DC power adapter |
|
|
Environmental Conditions |
0 to 50°C / 32 to 122°F, relative humidity < 80% |
|
|
Dimensions |
240 × 220 × 80 mm |
|
|
Weight |
1.7 kg |
|
DO100 dissolved oxygen electrode |
|
DO electrolyte solution |
|
DO membrane cap |
|
12V DC power adapter |
