TB LRF Pro

By Brands

TB LRF Pro

Category: Thermal Clip-On
SKU: TB LRF Pro
After an in-depth hardware upgrade and software optimization, the TB LRF Pro Series combines precision and portability. Its appearance remains light without reducing professionalism at all: built-in laser rangefinder can reach an ultra-long distance of up to 1,000 meters; two batteries empower a longer operating time; full HD AMOLED display brings a rich and detailed visual experience; it also supports intelligent functions such as image tracing, automatic recording after each shot, etc.

12um infrared detector

TB LRF Pro Series adapts the high-sensitive 12um infrared detector with NETD down to 20mK. The advanced detector can distinguish the slightest differences and changes in temperature.

FuII-HD 1920x1080 AMOLED display

TB LRF Pro Series is equipped with a 0.39" AMOLED 1920x1080 display screen, presenting a vivid image with more details for users.

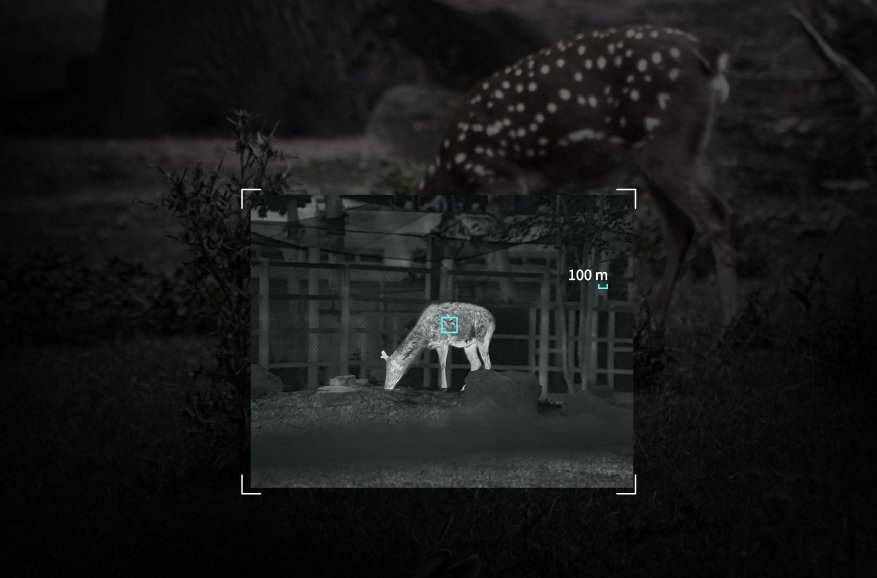

1000m laser rangefinder

The built-in LRF module provides a long laser rangefinder ofup to 1000m, enabling users to detect and locate the targets quickly and precisely.

IP68 dustproot & waterproof

Compact and rugged, portable and powerful, the TB LRF Pro Series shares the high protective features of lP68, to support your outdoor adventures in the harsh environment.

Specifications

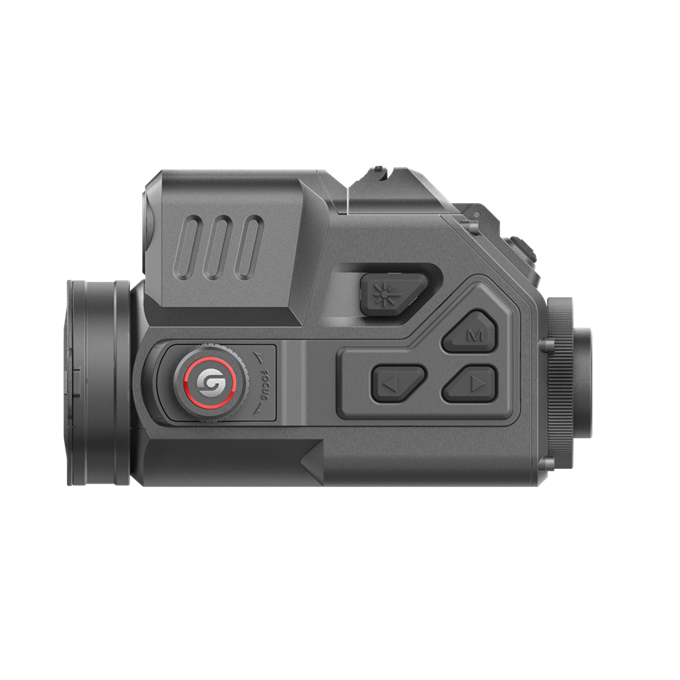

SpecificationTB650LP
Product ModelTB650LP
Sensor
TypeUncooled VOx Infrared Detector, 8 to 14μm
Resolution640×512@12μm
NETD20mK
Frame rate50Hz
Lens
Objective lens50mm, F1.0
Field of View8.8°×7°
FOV m@100m15×12
Magnification1x
Detection range2600m/2800yd
FocusManual
Display
Display type0.39'' AMOLED 1920×1080
Color palettesWhite Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
EyepieceEye relief: 20mm
Hardware
Laser rangefinder1000m/1090yd
WIFI2.4G, 5G
InterfaceUSB-C (Power supply/USB2.0)
OthersMicrophone, Bluetooth
System
Recording functionPhoto/Video (Audio recording included)
Storage capacity64GB
Power
Battery type2 Replaceable 18650 Batteries
Operating time9 hours
Environmental
Operating temp.-20°C to 50°C / -4°F to +122°F
Shock1000G (as per IEC60068-2-27)
IP RatingIP68
Physical
Weight (g/oz)582/20.53
Size (mm/in)161×89×97/6.34×3.50×3.82

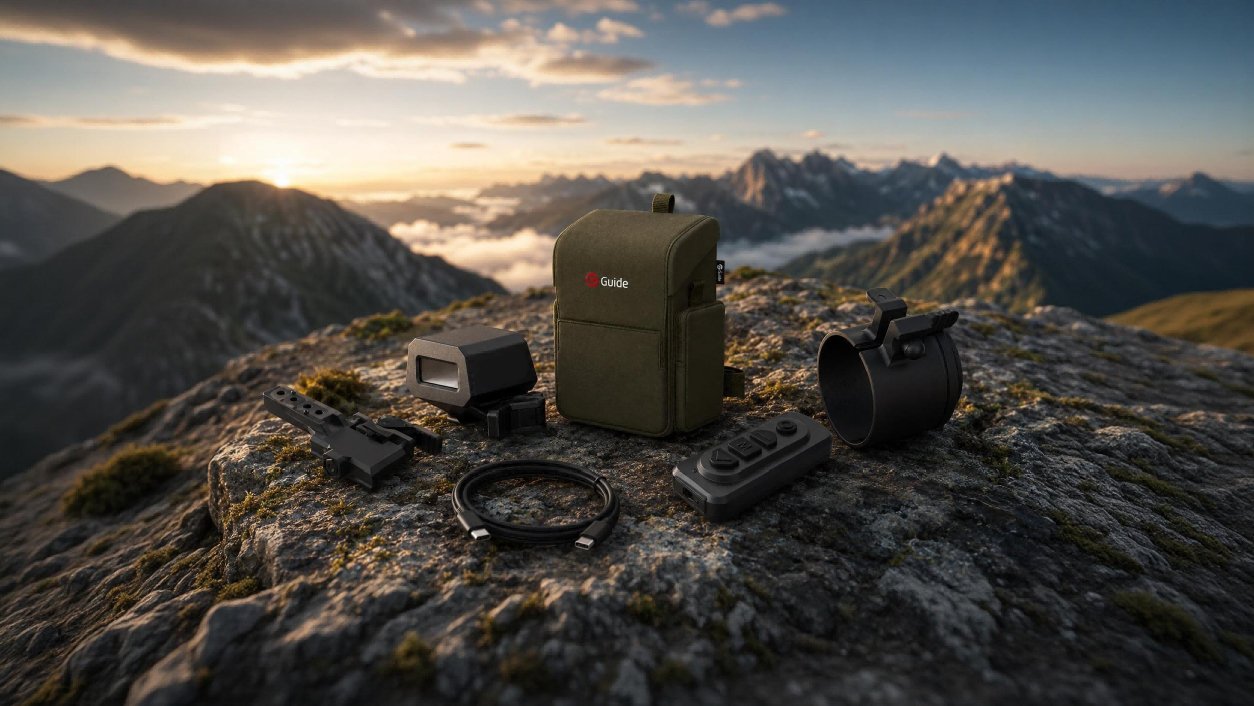

StandardDevice, 18650 Battery ×2, Battery Charger,  5V 2A Adapter (US, UK, Australia, and Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card
OptionalBluetooth Remote Control, Adapter Ring, 18650 Battery
