Justrite 35128 Gas Cylinder Storage Rack

The Justrite 35128 is a floor-mounted steel storage rack designed to securely hold up to six gas cylinders in a three-wide by two-deep configuration. Suitable for indoor or outdoor bulk cylinder storage, it features durable square steel tubing, two welded steel safety chains per cylinder and pre-drilled floor mounting holes.

The rack is continuously seam welded at all junction points and finished with exterior-grade powder-coated paint for improved strength, durability and corrosion resistance. Its steel tubing is capped with high-density polyethylene caps to help prevent corrosion and reduce the risk of injury from exposed edges.

When properly mounted, the rack meets USGS high-hazard seismic zone requirements. Model 35350 S4-rated anchor bolts are required for seismic installations and are sold separately.

Specifications

• Brand: Justrite
• Model: 35128
• UPC: 697841210370
• Product Type: Gas Cylinder Storage Rack

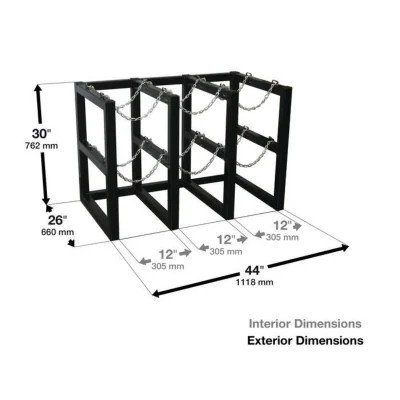

• Cylinder Configuration: 3 Wide × 2 Deep
• Cylinder Capacity: 6 Cylinders
• Cylinder Bay Width: 12 inches
• Minimum Cylinder Diameter: 8 inches
• Maximum Cylinder Diameter: 12 inches
• Mount Type: Floor Mounted
• Number of Mounting Holes: 4
• Mounting Hole Diameter: 0.531 inches / 14 mm
• Restraint Style: Steel Chain
• Chains Per Cylinder: 2
• Material: Steel
• Frame Construction: 2-inch / 51 mm Square Steel Tubing
• Surface Finish: Exterior-Grade Powder-Coat Paint
• Tube Caps: High-Density Polyethylene
• Suitable for Indoor and Outdoor Use: Yes
• NFPA 1 Fire Code Compliance: Yes
• NFPA 55 Compliance: Yes
• OSHA Compliance: Yes
• CGA Compliance: Yes
• High-Hazard Seismic Zone Suitable: Yes, When Properly Mounted
• Seismic Anchor Bolts: Model 35350 S4, Not Included
• Net Weight: 75 kg / 165 lbs
• Net Dimensions: 111.8 × 66 × 76.2 cm
