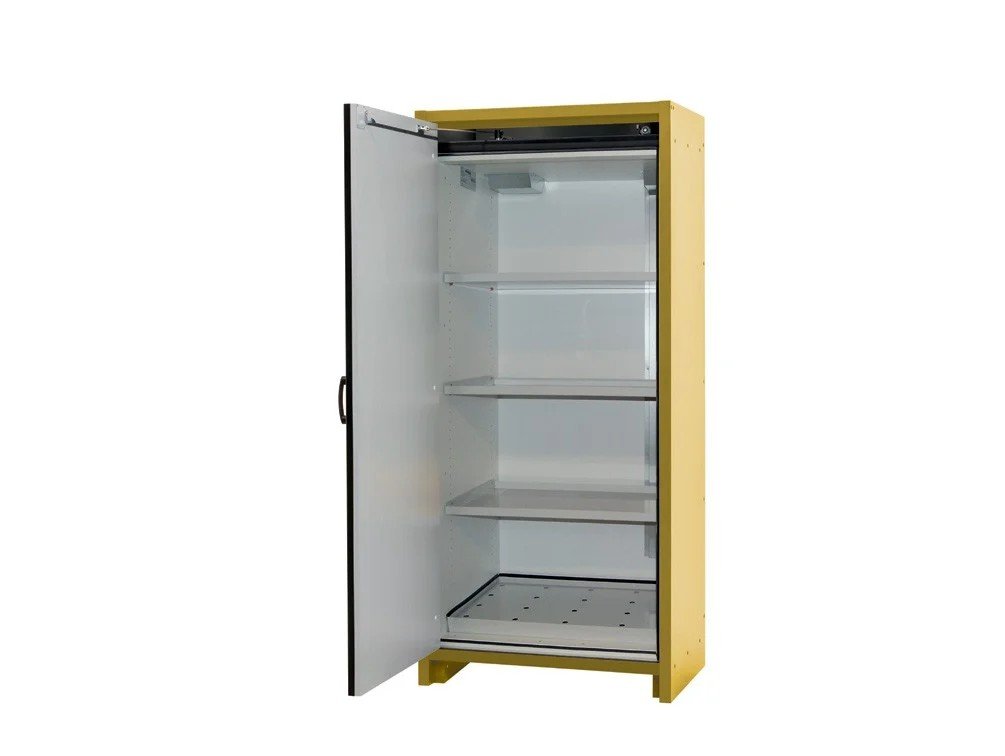

Justrite 22601 Flammable Safety Storage Cabinet

The Justrite 22601 is a 30-gallon flammable safety storage cabinet designed for safe storage and segregation of flammable materials, providing 30 minutes of fire resistance. It features a hybrid-close self-closing door, three adjustable shelves, fire-responsive sealing systems and compliance with EN, OSHA and NFPA requirements.

Specifications

• Brand: Justrite
• Model: 22601
• International Model No.: 22601
• UPC: 697841165342
• Product Type: Flammable Safety Storage Cabinet
• Colour: Yellow
• Capacity: 30 gallon / 114 litres
• Maximum Capacity: 168 × 1-litre bottles
• Fire Resistance: 30 minutes
• Number of Doors: 1
• Door Type: Hybrid-close / self-closing
• Number of Shelves: 3
• Adjustable Shelves: Yes
• Shelf Adjustment: 32 mm increments
• Shelf Load Capacity: 75 kg per shelf
• Overall Load Capacity Compliance: 600 kg
• Body Material: Melamine resin with flame-retardant special plates
• Door Material: Steel with flame-retardant special plates
• Finish: Textured powder-coated steel door front
• Bottom Sump Depth: 76 mm
• Shelf Ledge Height: 30 mm
• Door Closing System: Hydraulic door closer
• Door Open Arrest System: Yes
• Fusible Link Release Temperature: 47°C
• Vent Butterfly Valve Closing Temperature: 70°C
• Air Vents: Yes, with flame arresters and caps
• Intumescent Sealing Strips: Yes
• Independent Cylinder Lock: Yes
• Adjustable Levelling Feet: Yes
• Integrated Transport Base: Yes
• Haz-Alert™ Reflective Warning Labels: Yes
• FM Approved: Yes
• OSHA Compliant: Yes
• NFPA 30 Compliant: Yes
• NFPA 1 Fire Code Compliant: Yes
• EN 14470-1 Compliant: Yes
• EN 14727 Compliant: Yes
• GPSG Article 7, Paragraph 1 Compliant: Yes

Fire Safety Features

Under fire conditions, the cabinet's intumescent strips expand to seal gaps, helping reduce heat entering the cabinet and providing up to 30 minutes of content protection.

The hybrid-close door uses a hydraulic closer and integrated door open arrest system. During a fire, the built-in fusible link releases at 47°C, allowing the door to close automatically.

The ventilation system also incorporates a butterfly valve that closes securely at 70°C, together with flame arresters and vent caps.

Spill Containment

The removable bottom sump includes a detachable perforated insert and a three-sided lip seal. This helps capture leaks and spills from the shelves within the 76 mm deep sump, while keeping containers stored above collected liquid clean and dry.
