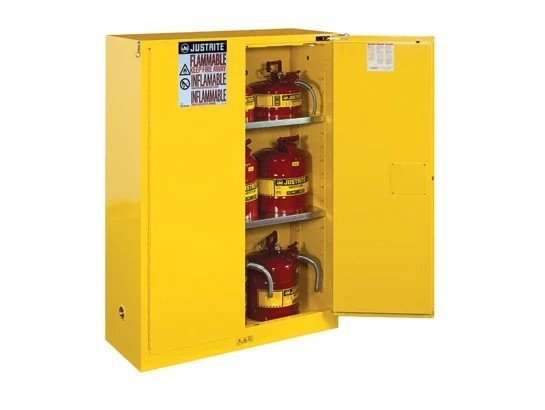

Justrite 894520 Flammable Liquid Safety Storage Cabinet

The Justrite 894520 Sure-Grip® EX Flammable Safety Cabinet is designed for the safe storage of chemicals and flammable liquids, with a 45-gallon (170 L) capacity, two adjustable shelves and two self-closing doors. Its double-wall steel construction, leak-tested sump and fire-resistant design support safer industrial chemical storage.

Specifications

• Brand: Justrite
• Model: 894520
• International Model No.: 8945201
• Product Type: Flammable Liquid Safety Storage Cabinet
• Series: Sure-Grip® EX
• Colour: Yellow
• Capacity: 45 gal / 170 L
• Material: 18-gauge steel
• Construction: Double-wall steel
• Insulating Air Space: 1.5 in / 38 mm
• Number of Doors: 2
• Door Type: Self Close
• Door Opening: Up to 140°
• Number of Shelves: 2
• Shelf Type: Adjustable SpillSlope® galvanised steel shelves
• Shelf Adjustment: 3 in / 76 mm centres
• Shelf Safe Allowable Load: 350 lb / 159 kg per shelf
• Interior Sump Depth: 2 in / 51 mm
• Locking System: U-Loc™ handle with cylinder lock and key set
• Warning Label: Trilingual Haz-Alert™ reflective warning label
• Vents: Dual vents with flame arresters
• Feet: 4 adjustable self-levelling feet
• Grounding: Built-in grounding connector
• Finish: Lead-free epoxy/polyester powder-coated finish
• FM Approval: Yes
• OSHA Compliance: Yes
• NFPA 30 Compliance: Yes
• NFPA 1 Fire Code Compliance: Yes
• International Fire Code Compliance: Yes
• Shelf Standard: ANSI MH28.1
• UPC: 697841110946
• Pallet Quantity: 1
• Net Weight: 120.9 kg / 266.5 lb
• Warranty: 10 years

Self-Closing Fire Safety Design

The self-closing doors are held open by fusible links during normal use. Under fire conditions, when the ambient temperature reaches 74°C (165°F), the fusible links melt and allow the doors to automatically swing shut.

The self-latching system uses three stainless steel bullet-slams positioned at the top, centre and bottom of the door to help secure the cabinet when closed.

Spill Control & Chemical Storage

The two patented SpillSlope® shelves are designed to direct spills towards the rear and into the cabinet's 51 mm leak-tested sump. The welded shelf hangers interlock with the shelves for additional stability.

The powder-coated finish provides chemical resistance inside and outside the cabinet while helping minimise the effects of corrosion and humidity.

Dimensions & Weight

Exterior Dimensions:

• Height: 165.1 cm
• Width: 109.2 cm
• Depth: 45.7 cm

Interior Dimensions:

• Height: 153.7 cm
• Width: 100.3 cm
• Depth: 37.0 cm

Net Weight: 120.9 kg
