Tvoc Fixed Pid Detector With Atex Approval

Volatile organic compounds (COV) are substances with a huge volatility. This means that they release vapors even at ambient pressure and temperature and thus easily spread gaseously in the air. In contact with heat, VOC can feature high risks of explosion or ignition.

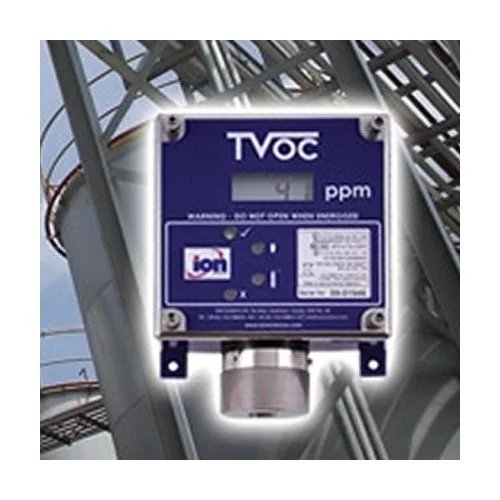

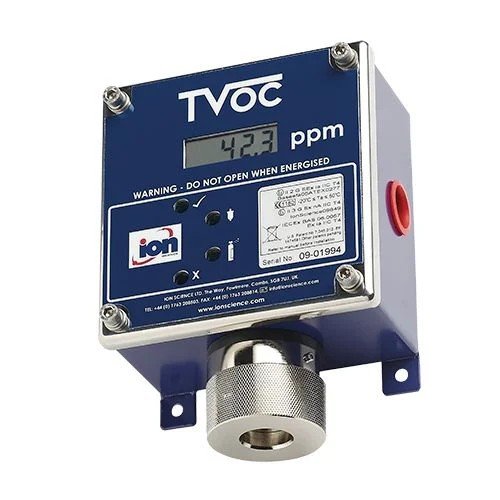

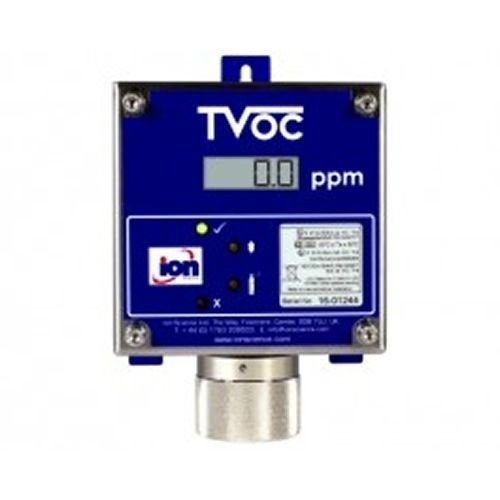

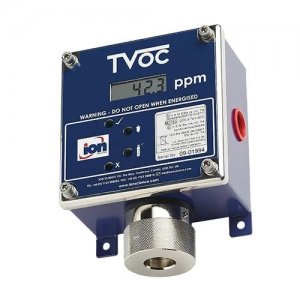

The TVOC is a VOC detector with photoionization using a 10.6 eV PID lamp. Featuring measure display and 4-20 mA analog output, the TVOC PID detector can be easily installed on any system with these signals. Thanks to its ATEX approval, this fixed gas detector can be used in category 2 hazardous areas without safety barrier.

TVOC PID detector assets

• 6 eV lamp for VOCs with IP power < 10,6 eV
• Measuring range: 0 to 10 pm - 0 to 100 ppm or 0 to 1 000 ppm on only one device
• Humidity resistant without compensation
• Accurate results under any atmospheric condition
• Rugged and solid design for better resistance to harshest environments
• Large LCD display for clear readouts
• Easy to use – minimum training required

  TVOC COV detector fields of application

  • Refineries and petrochemistry, offshore platforms
  • Solvents recovery system
  • Wastewater treatment
  • Pulp and paper
  • Pharmaceutical products
  • Indoor air quality monitoring
  • Industrial painting, printing inks and ground coating
