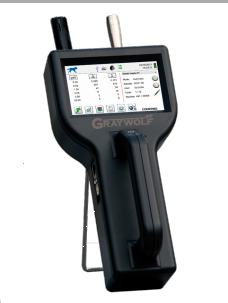

Graywolf Pc-3500 6 Channel Particle/Mass Handheld Meter Kit

Features and Benefits:

• Measures 0.3 μm to 25.0 μm.
• 0.1 CFM (2.83 LPM) flow rate.
• Long life laser diode technology.
• Measures up to 6 channels of simultaneous data.
• Approximates mass concentration in μg/m³ with density and refractive index corrections, including PM2.5, PM10 and TSP.
• Integrated handle for one-handed operation.
• Large easy-to-use icon driven color touch screen display.
• Optional, direct-connect %RH, C°/F° probe available.
• Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes internally, broader options when connected to Advanced Sense®/Tablet.
• Annotation function allows user to save 32 character notations to a sample record.
• Real-Time Meter for detecting particle contamination sources.
• Easy configuration and transferable from instrument to instrument
• Connect using RS-232, Ethernet, USB or (optional) Wireless 802.11 b/g, RS 485.
• Displays and externally prints reports for ISO 14644-1, EU GMP Annex I and FS 209E.
• Internal audible alarm.
• User-definable reports.
• User-selectable channel sizes.
• Complies with ISO 21501-4 and JIS B9921 standards.
• Seamless integration into a facility monitoring system.
• Lightweight high-impact injection molded plastic enclosure.
• 2 year warranty on instrument, except filters, 1 year on other accessories.

Use the PC-3500 as a stand-alone particle meter, plug it into a sophisticated AdvancedSense®/WolfPack® system or into a mobile computer for simultaneous connection with GrayWolf’s DirectSense® probes.

• Handheld Particle Meters PC-3500.
• The PC-3500 Handheld Particle Counter measures 0.3 μm to 25.0 μm with a flow rate of 0.1 CFM (2.83 LPM).
• Easy to configure, this instrument displays up to 6 user-selectable size channels as well as temperature and relative humidity.
• The PC-3500 mass concentration mode approximates density in μg/m³ and allows for density and refractive index corrections to ensure accuracy.
• The PC-3500 counters can be controlled and monitored remotely via web browser.
• Export data to (included) GrayWolf WolfSense® PC data-download software or view data and generate ISO 14644-1, EU GMP Annex 1 or FS 209E reports on screen or in real time through the versatile PC-3500 output options.
• The PC-3500 meets ISO 21501-4 and JIS B9921, ensuring compliance with an onboard pulse height analyzer.
