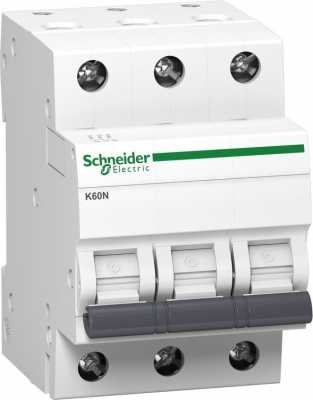

Schneider Acti9 K60N 3P 20A MCB with 6kA Breaking Capacity

The Schneider Acti9 K60N 3P 20A Miniature Circuit Breaker (MCB) is designed for AC distribution systems, providing reliable protection against overloads and short circuits. It features a B-curve tripping characteristic and offers a 6kA breaking capacity at 400V AC. This MCB is built with thermal-magnetic trip technology, ensuring efficient protection and long-lasting performance. The 3-pole design allows for multi-phase protection, and it is easily mounted on a DIN rail for quick installation.

Specifications:

• Brand: Schneider Electric

• Model: Acti9 K60N

• Poles: 3P (3 poles)

• Rated Current: 20A

• Network Type: AC

• Trip Unit Technology: Thermal-magnetic

• Curve Code: B

• Breaking Capacity: 6,000A at 400V AC 50/60Hz (EN/IEC 60898-1)

• Suitability for Isolation: Yes (EN/IEC 60898-1)

• Rated Insulation Voltage (Ui): 440V AC 50/60Hz

• Rated Impulse Withstand Voltage (Uimp): 4kV (EN/IEC 60898-1)

• Magnetic Tripping Limit: 3-5x rated current

• Mounting: Fixed on DIN Rail

• Product Certifications: OVE VDE

• Mechanical Durability: 20,000 cycles

• Electrical Durability: 10,000 cycles

• Width: 54mm (3 modules)

• Height: 81mm

• Depth: 70mm

• Weight: 0.24kg

• Colour: White (RAL9003)

• IP Rating: IP20 (IEC 60529)

• Operating Temperature: -25°C to 70°C

• Storage Temperature: -25°C to 85°C

Safety/Usage Note:

Ensure proper installation and maintenance according to the manufacturer's guidelines to guarantee optimal performance and safety. Always confirm compatibility with your electrical system before installation.
