Space Saving Flammable Liquid Storage for Limited Floor Space

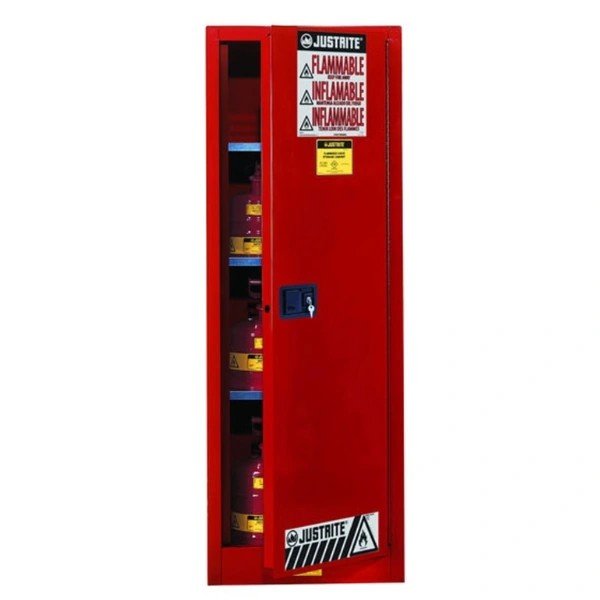

The Justrite 892221 Sure-Grip EX Slimline Flammable Safety Cabinet provides safe storage for up to 22 gal (83 L) of flammable liquids while using minimal floor space. Its slim profile, fire resistant double wall steel construction and self closing door make it suitable for laboratories, construction sites, engineering facilities, garages, machine shops and R&D environments.

Designed for areas where conventional safety cabinets may be too wide, the cabinet measures just 591 mm across and can sit flush alongside a 45 gal cabinet. Its fully welded 18 gauge steel construction features a 38 mm insulating air space to provide increased fire resistance and structural durability.

The self closing door opens up to 140 degrees for convenient access. During fire conditions, fusible links melt when the surrounding temperature reaches 74°C, allowing the door to automatically close and engage the three point self latching system.

Three adjustable SpillSlope shelves help direct spills towards the rear and into the cabinet's 51 mm leak tested sump. Each galvanised steel shelf supports a safe allowable load of up to 159 kg and can be adjusted at 76 mm intervals.

Specifications

• Brand: Justrite
• Model: 892221
• International Model: 8922211
• Product Category: Flammable Safety Cabinet
• Series: Sure-Grip EX Slimline
• Colour: Red
• Capacity: 22 gal / 83 L
• Material: 18 gauge steel
• Construction: Double wall steel with 38 mm insulating air space
• Number of Doors: 1
• Door Type: Self closing
• Door Opening: Up to 140°
• Number of Shelves: 3
• Shelf Type: Galvanised steel SpillSlope shelves
• Adjustable Shelves: Yes
• Shelf Adjustment: 76 mm centres
• Shelf Load Capacity: 159 kg per shelf
• Sump Depth: 51 mm
• Exterior Dimensions: 1651 mm H x 591 mm W x 457 mm D
• Interior Dimensions: 1537 mm H x 508 mm W x 370 mm D
• Net Weight: 86.6 kg
• FM Approved: Yes
• OSHA Compliant: Yes
• International Fire Code Compliant: Yes
• NFPA 30 Compliant: Yes
• NFPA 1 Fire Code Compliant: Yes
• Locking System: U-Loc handle with cylinder lock and key
• Warning Label: Trilingual Haz-Alert reflective flammable warning label
• Ventilation: Dual vents with flame arresters
• Levelling: Four adjustable self levelling feet
• Grounding: Built in grounding connector
• Finish: Lead free epoxy/polyester powder coat
• Warranty: 10 years
• UPC: 697841113008

Safety Note

When used as designed, the self closing door automatically shuts during a fire when the fusible links reach approximately 74°C. Chemical storage requirements depend on the type and flammability of the liquid, so applicable workplace and local safety requirements should always be followed.
