Air Systems BB60-COIS Breather Box® Grade D Air Filtration System

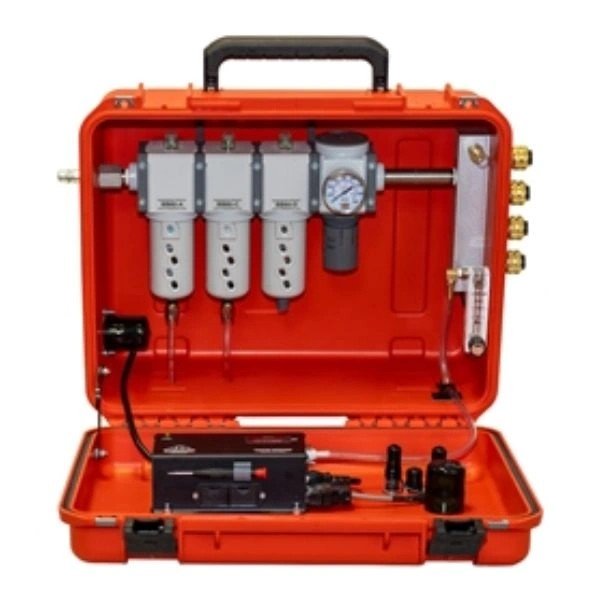

The Air Systems BB60-COIS Breather Box® is a portable 60 CFM Grade D breathing air filtration system with four outlets, intrinsically safe operation and continuous carbon monoxide monitoring. It filters compressed air through three stages to supply respirator users with clean breathing air while monitoring for unsafe CO levels.

Specifications

• Brand: Air Systems International
• Product Range: The Original Breather Box®
• Model: BB60-COIS
• SKU: BB60-COIS
• Product Type: Portable Grade D breathing air filtration system
• Airflow Capacity: More than 60 CFM
• Number of Outlets: 4
• Safety Classification: Intrinsically safe
• Monitoring System: Carbon monoxide monitor
• Filtration Stages: 3
• Filtration Efficiency: 99.99% at 0.01 micron
• Particulate Removal: 99.9999%
• Oil Removal Efficiency: 99.8%
• Operating Temperature: -5°C to 60°C
• Filter Indicators: Differential pressure and filter change indicators
• Drain System: Automatic drains on the first and second filters
• Third-Stage Drain: Manual
• Power Supply: Disposable 9V batteries, 8–16V DC or 115V AC
• Alarm System: External audible alarm and warning light
• Remote Alarm Connection: Provided
• Construction: Compact metal and polymer filtration components
• Filter Bowl System: Polymer bowl locking system
• Recommended Position: Upright and closed during operation

Three-Stage Filtration

• First Stage: Removes bulk water and particulates and includes an automatic drain.
• Second Stage: Removes atomised oils, mist and ultra-fine particulates and includes an automatic drain.
• Third Stage: Removes organic vapours and odours and includes a manual drain.

The low-pressure-drop filter design supports efficient airflow across each filtration stage. Point-of-Attachment boxes may also be used to extend respirator operation beyond 300 feet.

Safety Note: Always operate the Breather Box® in an upright and closed position to help prevent internal contamination.
