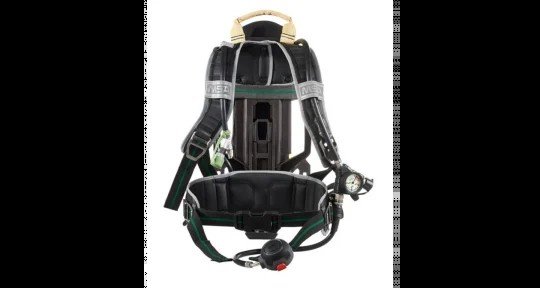

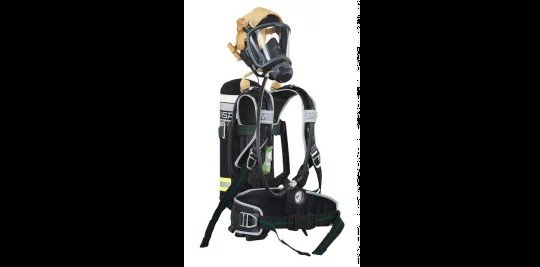

MSA M1 SCBA With Swivel Waistbelt & Advance Harness

The MSA M1 SCBA is a modular self-contained breathing apparatus designed with a bumper, swivel waistbelt, Advance harness and metal buckles for improved ergonomics, durability and user comfort. Its configurable platform supports field upgrades, simplified cleaning and guided hose routing for demanding respiratory protection applications.

Specifications

• Brand: MSA
• Model: M1 SCBA
• Product Category: Self-Contained Breathing Apparatus (SCBA)
• Configuration: Work SL
• Backplate: With bumper
• Waistbelt: Swivel
• Harness: Advance harness
• Buckles: Metal, stainless steel
• Approval: EN 137 Type 1 and Type 2
• Operating Temperature Tested: Down to -40°C
• ATEX: II 1G IIC T6 / II 1D IIIC
• ATEX Ambient Temperature: -40°C to +60°C
• Backplate Material: Glass fibre reinforced polyamide, flame-retardant with conducting surface
• Advance Harness Core: Flame-retardant polyethylene foam padding
• Advance Harness Outer Shell: Coated aramid textile
• Harness Properties: Flame-retardant, tear-resistant and conducting
• Hip Belt: Padded Advance design with coated aramid textile
• Cylinder Strap: Aramid textile
• Metal Buckle Material: Stainless steel
• Bumper Material: TPE thermoplastic elastomer
• Backplate Adjustment: One-handed height adjustment available with S/M/L markings
• Harness Design: Padded S-shaped design to help reduce pressure points and slipping
• Hip Belt Design: Supports even weight distribution
• Hose Routing: Guided through the backplate to reduce snagging hazards
• Visibility: Reflective harness elements
• Cleaning: Entire SCBA is machine washable without disassembly
• Harness Surface: Dust and water-repellent
• Upgrade Capability: Modular design allows field-installed upgrades
• SingleLine SCOUT: Retrofittable
• M1 Control Module: Available
• Pressure Reducer Air Flow Capacity: Approx. 600–1,000 L/min
• Pressure Reducer Medium Pressure Range: Approx. 6.0–8.0 bar
• LGDV Medium Pressure Range: Approx. 3.5–10.0 bar

Features

• Modular SCBA platform for configurable respiratory protection
• Swivel waistbelt improves movement and weight distribution
• Padded Advance harness designed for improved wearer comfort
• Durable stainless steel metal buckles
• Protective backplate bumper
• Simplified assembly, cleaning and servicing
• Flame-retardant and tear-resistant harness construction
• Reflective elements improve visibility in dark or smoke-filled areas
• Guided hoses help minimise snagging hazards
• Designed for future upgrades without requiring special tools
