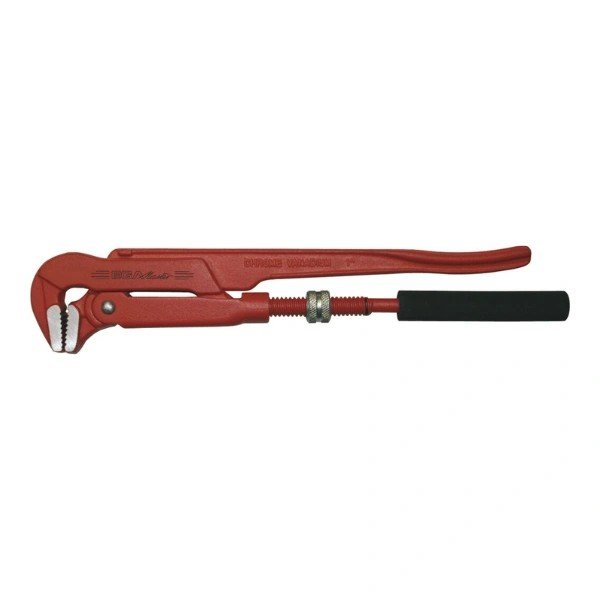

EGA Master 90° Swedish Pipe Wrench

The EGA Master 90° Swedish Pipe Wrench models 61046, 61047, 61048, 61049 and 61051 are heavy-duty pipe wrenches made from chrome-vanadium alloy and manufactured to DIN 5234 standard. Designed for secure pipe gripping, these totally forged wrenches feature jaw teeth orientation for firm hold, a soft foam grip handle for comfortable use, and a 90° head suitable for pipe work applications.

Specifications

• Brand: EGA Master
• Product type: Swedish Pipe Wrench 90°
• Variations / Model numbers: 61046, 61047, 61048, 61049, 61051
• Material: Chrome-vanadium
• Standard: DIN 5234
• Construction: Totally forged
• Handle: Soft foam grip
• Teeth hardness: 50–55 HRc
• General hardness: Female 33–40 HRc / Male 38–45 HRc
• Nut hardness: 40–45 HRc
• Finish: Painted in EPOXI powder red colour RAL-2002 semi-texturized

Key features:

• Ideal grip of the pipe from jaw design and teeth orientation
• Comfortable handling with soft foam coated handles
• Registered model

Variation Specifications

• 61046: A 18, Pipe capacity 1", C 15, Length 320 mm, Weight 0.7 kg

• 61047: A 20, Pipe capacity 1.1/2", C 18, Length 430 mm, Weight 1.3 kg

• 61048: A 25, Pipe capacity 2", C 20, Length 550 mm, Weight 2.3 kg

• 61049: A 30, Pipe capacity 3", Length 600 mm, Weight 3.0 kg

• 61051: A 34, Pipe capacity 4", C 31, Length 750 mm, Weight 5.3 kg

Usage Note
Select the correct variation based on the required pipe capacity and working space for safer, more effective operation.
