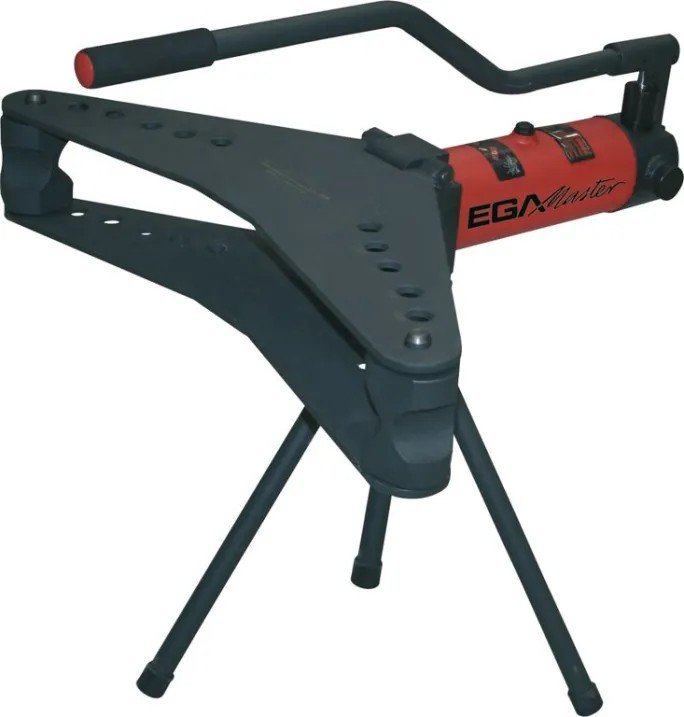

EGA Master Curvamatic Hydraulic Pipe Bender

The EGA Master Curvamatic Hydraulic Pipe Bender is a hydraulic pipe bending machine designed for API norm pipe and DIN-2440 steel pipe applications. Available in Code 60015 (Curvamatic 2) and Code 60016 (Curvamatic 3), it features a special 2-VELO valve system that allows fast pre-loading and soft bending without the need to change pistons. With a maximum curvature of 90º, two speeds and quick action, it is suitable for professional piping work where controlled bending performance is required.

Specifications

• Brand: EGA Master

• Product Type: Hydraulic Pipe Bender

• Series: Curvamatic

• Application: Piping machines

• Suitable For: API norm pipe, DIN-2440 steel pipe

• Maximum Degree of Curvature: 90º

• Operating Speeds: Two speeds

• Function: Quick action

• Valve System: 2-VELO valve system

• Benefit of Valve System: Fast pre-loading and soft bending without changing pistons

• Variant 1 Model: Curvamatic 2

• Variant 1 Code: 60015

• Variant 1 Pipe Capacity: 1/4–2"

• Variant 1 Capacity: 10 tons

• Variant 2 Model: Curvamatic 3

• Variant 2 Code: 60016

• Variant 2 Pipe Capacity: 1/4–3"

• Variant 2 Capacity: 13 tons

• Marking: CE

• Additional Indication: 12M

Usage Note: Select the correct model based on the required pipe size and application before operation.
