EGA Master 63134 Drop Head Threader 1/4-2 BSPT

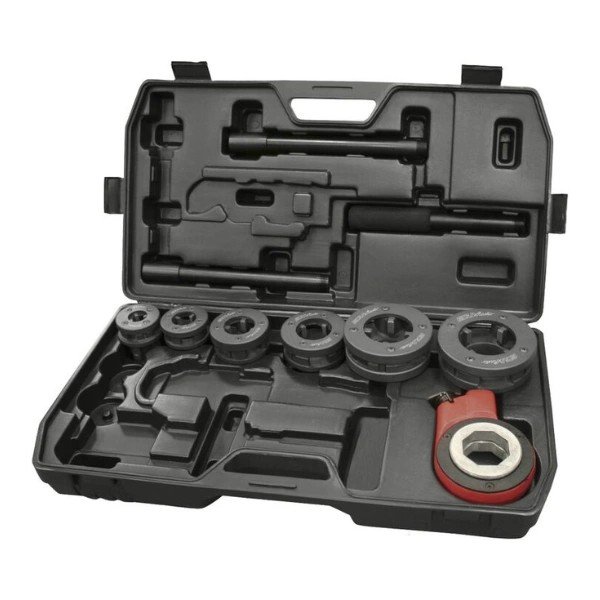

The EGA Master 63134 Drop Head Threader is a heavy-duty pipe tool designed for precise manual threading. EGA Master model 63134 features a long neck for better positioning, reduced vibration and improved thread quality, while the internally machined aluminium cover helps keep the four combs perfectly concentric for accurate results. It is suitable for BSPT threads with a 1/4-2 capacity and is compatible with multiple head sizes to suit different threading requirements.

Specifications

• Brand: EGA Master

• Model: 63134

• Product Type: Drop head threader

• Application: Pipe tools

• Thread Type: BSPT

• Capacity: 1/4-2

• Weight: 14

• Features: Heavy duty

• Compatible Codes: 59018, 59019, 63003, 63004, 63005, 63006, 63008, 63009

• Ratchet Code: 63010

• Case Code: 50002

• Head Body Material: Malleable cast iron

• Lid Material: Aluminium

• Combs Material: Special steel

• Ratchet Material: Aluminium alloy

• Reducer Material: Aluminium

• Combs Hardness: 58-62 HRc

• Ratchet Hardness: 45-50 HRc

• Finish: Semi-textured black epoxy powder on heads; semi-textured red epoxy powder (RAL-2002) on ratchet
