YOUNGSHINE IVIEW+ AI Pedestrian Detection 2 Camera Bundle

The Youngshine IVIEW+ 2 Camera Bundle is an AI-powered pedestrian detection system supplied with 1 monitor, 2 cameras and 1 amplifier + speaker assembly for enhanced safety alert. Powered by deep learning technology, the system detects human figures in real time and provides visible on-screen warnings with audible alerts to help reduce collision risks in industrial environments.

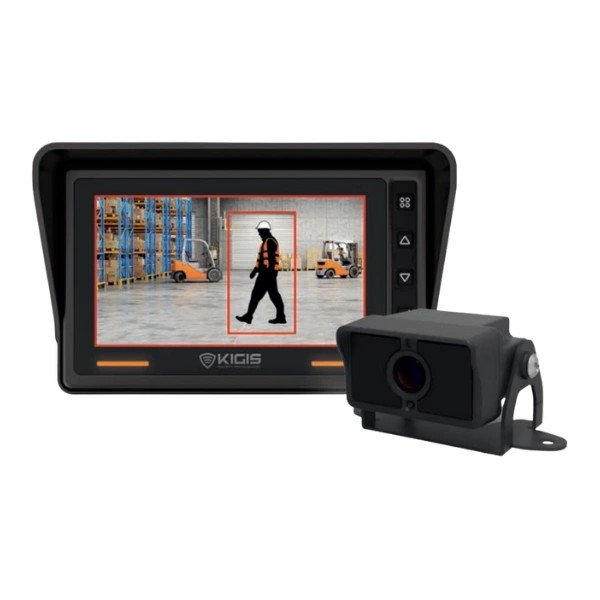

When a pedestrian is detected, a red box appears on the display together with an LCD/LED alert and beep sound. The system allows adjustable detection range settings with up to four depth zones, enabling configuration according to vehicle movement. Built for harsh working conditions, the cameras are IP69K rated and suitable for warehouses, factories, construction sites, mining operations and ports.

Bundle Includes

• 1 × IVIEW+ 7" HD Monitor

• 2 × IVIEW+ AI Cameras

• 1 × Amplifier + Speaker Assembly

Specifications

Monitor

• Screen Size: 7 inch TFT / 1024 × 600

• Colour Depth: 16.7M

• Operating Voltage: DC 12V ~ 48V

• Operating Temperature: -20°C to 65°C

• Dimensions: 22.5 × 14.0 × 7.0 cm

• Weight: 1.03 kg

• Buttons: 5 buttons with LED backlight

• Camera Input: Up to 2 channels

• Video Input: Composite Video (CVBS) 75Ω 1Vp-p

Camera (Per Unit)

• Image Sensor: 1/4" Colour CMOS Image Sensor

• View Angle: 132° (D), 100° (H), 76° (V)

• Operating Voltage: DC 12V (via monitor)

• Operating Temperature: -40°C to 105°C

• Dimensions: 6.0 × 3.5 × 4.8 cm

• Waterproof Rating: IP69K

• Video Output: Composite Video (CVBS) 75Ω 1Vp-p

Alert System

• 92dB high-powered sound

• Volume control

• External siren / speaker support

• Optional voice support

Applications

Suitable for forklifts, excavators, wheel loaders, tractors and other industrial vehicles operating in high-risk work areas.

Note: Ensure compatibility with vehicle voltage before installation. Specifications may change for product improvement.
