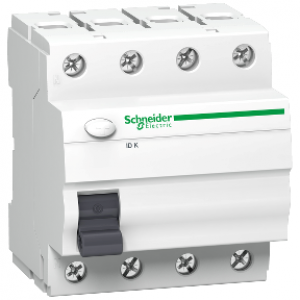

Schneider Acti 9 K RCCB 4P 40A 100mA AC Residual Current Circuit Breaker

The Schneider Acti 9 K RCCB 4P 40A 100mA AC (Commercial Reference: A9KR15440) provides reliable protection against electrical shocks and fire hazards. With a 40A current rating and 100mA residual current sensitivity, this 4-pole RCCB is designed to disconnect electrical circuits in the event of earth faults. It features AC-type protection for alternating currents, making it suitable for various residential, commercial, and industrial applications. The 4-module size allows efficient use of space in electrical panels, and the DIN rail mounting ensures secure and easy installation.

Specifications:

• Brand: Schneider Electric

• Product Type: Residual Current Circuit Breaker (RCCB)

• Commercial Reference: A9KR15440

• Poles: 4P (Four Poles)

• Rated Current: 40A

• Residual Current Sensitivity: 100mA (0.1A)

• Protection Type: AC-type

• Modules: 4

• Terminals: Double terminal (bi-connect)

• Mounting Mode: DIN rail mounting

Ensure installation follows standard electrical practices for maximum safety and performance.
