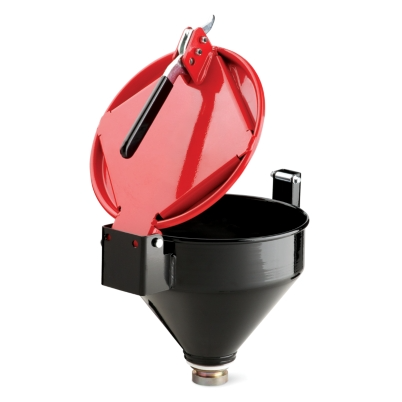

New Pig DRM1125-RD-NPT Burpless® Steel Drum Funnel

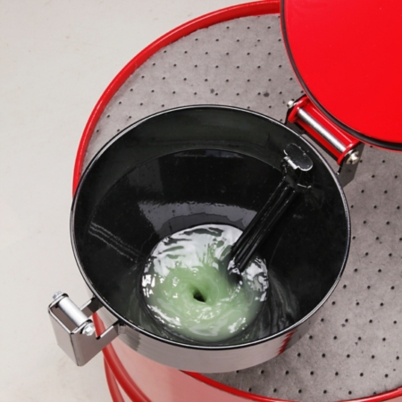

New Pig DRM1125-RD-NPT Burpless® Steel Drum Funnel is built for fast, no-splash pouring and one-handed access to support closed container compliance. The patented Burpless® design enables smooth flow without venting through the .75" dia. bung, helping reduce the risk of vapour emissions and potential regulatory issues if left open.

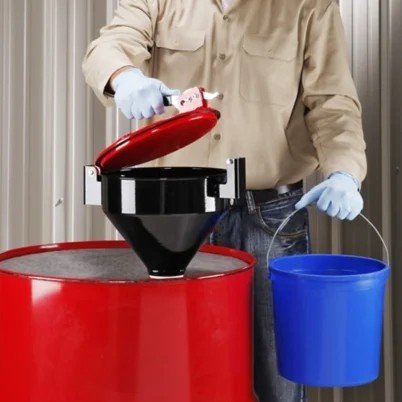

The latching/locking lid opens and closes instantly using one hand, while the nitrile lid gasket and secure locking mechanism fully seal the lid to help limit vapour release. The powder-coated steel construction is durable and chemical-resistant for long service life, and the funnel can be padlocked to prevent unauthorised access. It is FM Approved for flammable liquids when equipped with a PIG Drum Funnel Flame Arrestor (DRM617, sold separately). Multiple lid colour options support drum segregation.

Specifications

• Brand: PIG (New Pig)

• Model: DRM1125-RD-NPT

• Category: Steel Drum Funnel

• Use With: 20 to 55 gal. Poly or Steel Drums with 2" NPT

• Dimensions: 11.25" W x 15" L x 13" H

• Drainage Space: 10.5" Dia. x 2.75" H draining area

• Drum Bung Opening: 2" Dia. NPT bung

• Drum Type: Steel drum; Poly drum

• Drum Size: 20 gal.; 30 gal.; 55 gal.

• Lid Type: Latching/Locking lid

• Overfill Preventer: Sold separately

• Special Feature: Burpless; Vapor Control; Padlockable

• Use With Flammables: Yes (FM Approved when equipped with flame arrestor, sold separately)

• Composition: Funnel: Powder-coated steel; Lid gasket: Nitrile; Bung gasket: PTFE

• Weight: 14 lbs.

• Sold As: 1 each

• New Pig Patent: 5,676,185

• # per Pallet: 50

• UNSPSC: 27112902

Safety/Usage Note: For flammable liquids, use only when fitted with the specified flame arrestor (DRM617, sold separately). Overfill preventer is sold separately.
