Heightec MS01 CHRYSALIS Rescue Roll Stretcher

The Heightec MS01 CHRYSALIS is a versatile rescue roll stretcher designed for horizontal and vertical casualty lifting in confined, exposed and high locations. It features a unique integral full-body casualty harness, 260 kg static SWL, high-visibility waterproof construction and rapid-deployment restraint systems for secure rescue operations.

Specifications

• Brand: Heightec
• Model: MS01
• Product Name: CHRYSALIS
• Product Type: Rescue Roll Stretcher / Casualty Rescue Stretcher
• Application: Rescue and casualty handling
• Lifting Configuration: Horizontal and vertical lifting and lowering
• Static Safe Working Load (SWL): 260 kg
• Factor of Safety: 10:1
• Dynamic Test: Tested with 140 kg mass and 4 m fall
• Integral Harness: Full-body casualty restraint harness
• Harness Performance: Tested to dynamic performance requirements of EN 361:2002
• Patient Restraint Straps: 6 with quick-connect buckles
• Head Restraint: 1 head restraint system
• Harness Buckles: 2 quick-connect buckles
• Harness Adjustment: One-hand adjustment
• Foot Support: Adjustable integral support stirrup for vertical lifting
• Lifting Bridle: Removable 6-point lifting bridle supplied
• Vertical Lifting Point: Head attachment point
• Bridle Attachment: Metal lifting attachment
• Karabiners: Triple-action karabiners
• Side Handles: Low-profile design to reduce snagging risk
• Spine Board Compatibility: Compatible with spine boards placed on or within the stretcher
• Outer Construction: High-visibility, abrasion-resistant and waterproof
• Load-Bearing Materials: Polyamide, polyester, aluminium alloy and steel
• Cover Material: PVC
• Fittings: Plastic fittings
• Buckles: Stainless steel
• Internal Stiffening Sheet: Removable plastic sheet
• Cleaning: Components can be washed; internal sheet can be removed for machine washing

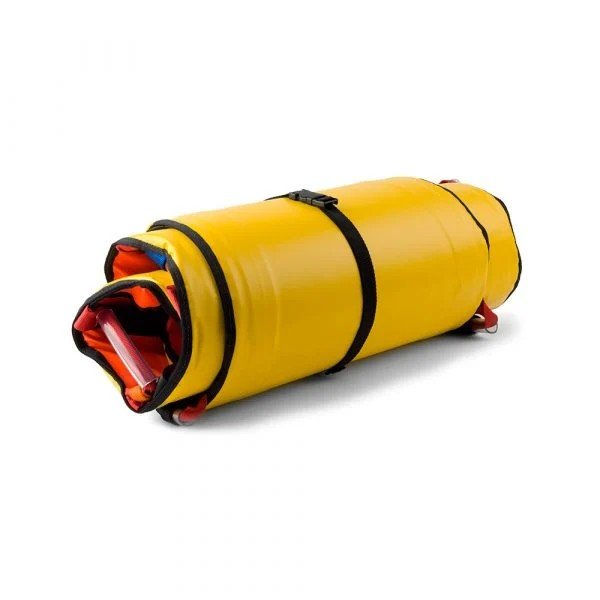

• Storage: Rolls up for compact storage and transport
• Storage Bag: KARI 50L durable waterproof PVC transport/storage bag supplied
• Conformity: MDD 93/42/EEC as amended by Directive 2007/47/EC
• Medical Device Classification: Class I Medical Device
• UK Registration: Registered with MHRA
• Commodity Code: 6307909899

Features

• Suitable for horizontal and vertical rescue lifting
• 260 kg SWL for static vertical and horizontal lifting
• Integral full-body casualty harness for secure patient handling
• Six quick-connect patient restraint straps
• Designed to lay flat to minimise casualty movement during fitting
• High-visibility construction for improved visibility in low-light environments
• Abrasion-resistant and water-resistant outer construction
• Compatible with spine boards
• Adjustable foot stirrup and head restraint
• Compact roll-up design for easier storage and transportation
• Supplied complete with lifting bridle and KARI 50L protective storage bag
• Removable internal stiffening sheet allows easier cleaning and maintenance
