Justrite Safe-T-Vent Thermally-Actuated Cabinet Damper

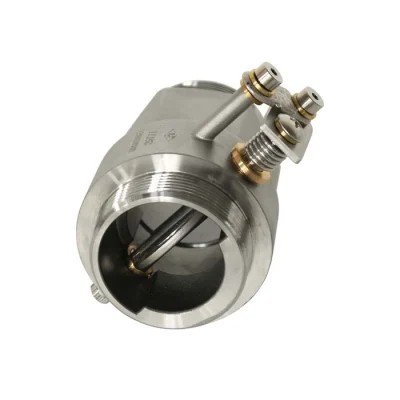

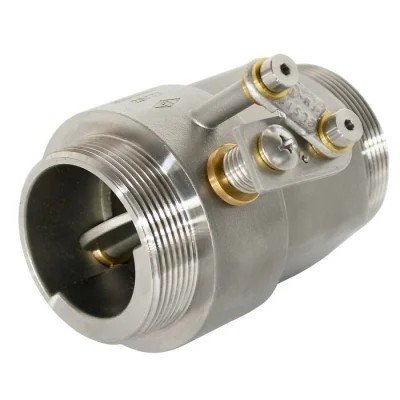

The Justrite 25777 Safe-T-Vent™ is an FM-approved thermally-actuated damper designed to ventilate safety cabinets without compromising cabinet integrity during a fire. Its corrosion-resistant stainless steel construction, reversible design and fusible link provide reliable ventilation control for cabinets storing flammable liquids and hazardous materials.

The fusible link melts at 165°F, automatically closing the valve plate to stop airflow through the cabinet vents during a fire. Its heavy-duty body helps reduce external-to-internal heat transfer, while brass bushings and a washer support smooth, reliable valve operation.

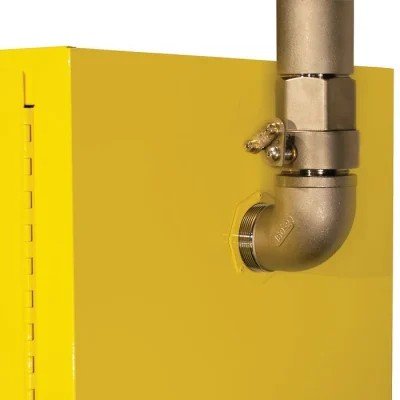

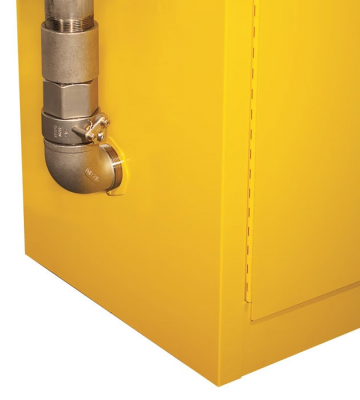

Suitable for manual and self-closing Justrite safety cabinets that accept 2-inch NPT threads. Each cabinet requires two dampers: one for fresh air intake and one for exhaust ventilation.

Specifications

• Brand: Justrite
• Model Number: 25777
• Product Type: Thermally-Actuated Cabinet Damper
• Series: Safe-T-Vent™
• Material: Stainless Steel
• Connection: Nominal 2-Inch NPT
• Compatible Pipe: 2-Inch Nominal NPT Schedule 40 Steel Pipe
• Fusible Link Activation Temperature: 165°F
• FM Approved: Yes
• NFPA Compliance: Meets NFPA 30 Requirements
• Reversible Design: Yes
• Exterior Dimensions: 76 mm H × 117 mm W × 108 mm L
• Net Weight: 1.6 kg
• UPC: 697841229723
• Applications: Flammable Liquid, Pesticide, Acid, Corrosive and Hazardous Material Safety Cabinets

Usage Note: Ventilation systems should be designed in consultation with a professional engineer. Install using non-combustible ducting and suitable static-management measures.

California Proposition 65 Warning: This product may expose users to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
