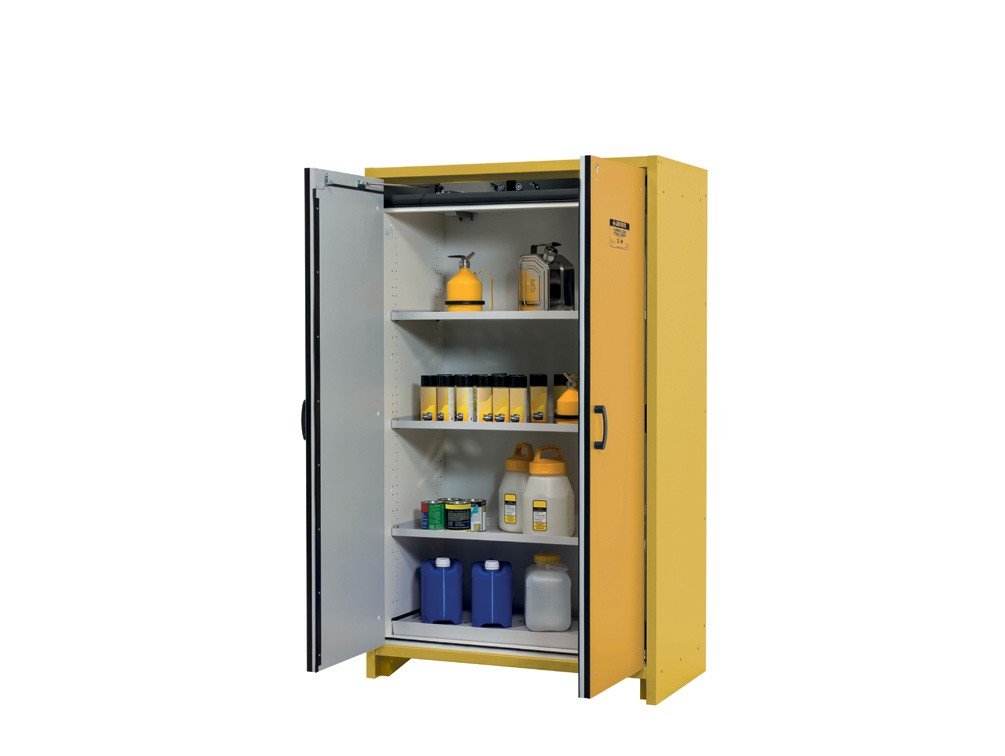

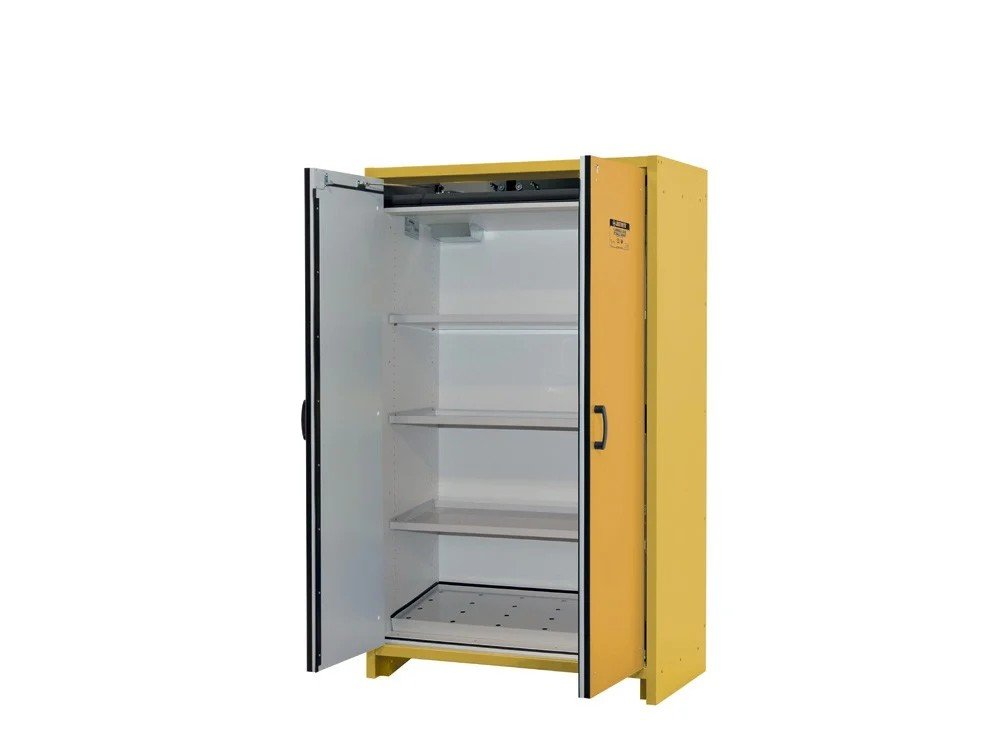

Justrite 22603 45 Gallon Flammable Safety Cabinet

The Justrite 22603 is a 45 gallon yellow flammable safety cabinet designed for safe storage and segregation of flammable liquids, with 30 minutes of fire resistance, 3 adjustable shelves and 2 hybrid-close doors.

Built with a melamine resin body and steel door front with flame-retardant special plates, this cabinet helps protect contents during fire conditions. Intumescent strips expand to seal gaps and reduce heat entering the cabinet, supporting safer evacuation time.

The hybrid-close doors feature a hydraulic door-closer, integrated door open arrest system and fusible link release for automatic closure at 118°F / 47°C. Adjustable powder-coated steel shelves have a 165 lb / 75 kg load capacity each, with raised ledges to help prevent containers from sliding off.

Specifications

• Brand: Justrite
• Model No.: 22603
• Colour: Yellow
• Capacity: 45 gallon / 170 litres
• Maximum Capacity: 264 x 1 litre bottles
• Number of Doors: 2
• Door Type: Hybrid-close
• Number of Shelves: 3
• Adjustable Shelves: Yes
• Material: Melamine resin body and steel doors with flame-retardant special plates
• Fire Resistance: 30 minutes
• FM Approval: Yes
• OSHA Compliance: Yes
• NFPA 30 Compliance: Yes
• NFPA 1 Fire-Code Compliance: Yes
• EN Compliance: EN 14470-1 and EN 14727
• Load Capacity Compliance: 1323 lb / 600 kg
• Shelf Load Capacity: 165 lb / 75 kg per shelf
• Exterior Dimensions: 1947 mm H x 1164 mm W x 620 mm D
• Interior Dimensions: 1626 mm H x 1050 mm W x 519 mm D
• Net Weight: 264.9 kg
• UPC: 697841165427

Usage Note

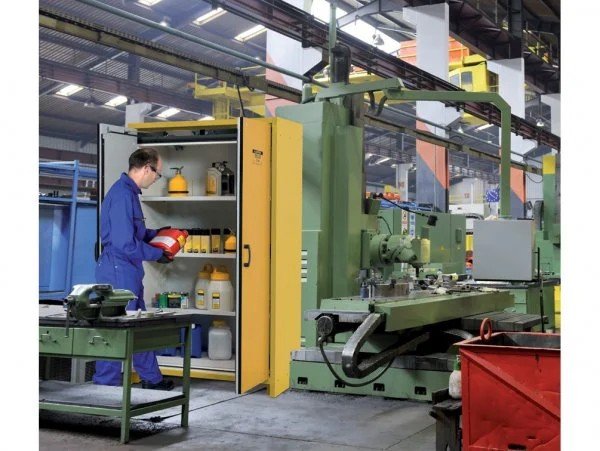

Suitable for industrial, laboratory and workplace storage areas where flammable liquids need to be stored safely and in compliance with recognised safety standards.
