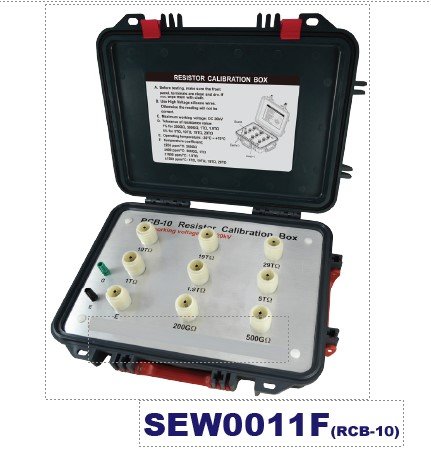

The SEW0011F-RCB-10 is used to verify and proof High Voltage Insulation Testers. Both
Analogue and Digital Insulation Testers can be calibrated to a very high level of accuracy.
SEW is able to manufacture special calibrators for certain institutions and large industries
with unique requirements.
SPECIFICATIONS
Resistance ranges (Ω) 200GΩ. 500GΩ. 1TΩ. 1.9TΩ. 5TΩ. 10TΩ. 19TΩ. 29TΩ
Resistance tolerances
± 1% for 200GΩ. 500GΩ. 1TΩ. 1.9TΩ
± 5% for 5TΩ. 10TΩ. 19TΩ. 29TΩ
Tolerance
± 200ppm/°C: 200GΩ
± 400ppm/°C: 500GΩ. 1TΩ.
± 1000ppm/°C: 1.9TΩ.
± 1500ppm/°C: 5TΩ. 10TΩ. 19TΩ. 29TΩ
Max. working voltage DC 20kV
Operating temperature -30°C~70°C
Dimensions 430(L) × 324(W) × 127(D)mm
Weight Approx. 4500g
